C1-C2960X-24TD-L

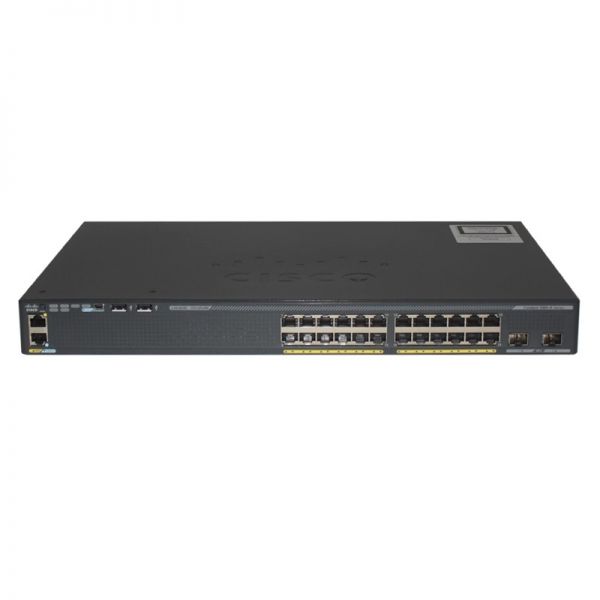

Model: C1-C2960X-24TD-L - Cisco ONE Catalyst 2960 Series Platform
In Stock
Login To See Price
Categories: ,

Quick Spec

Brand Cisco
Model C1-C2960X-24TD-L
Switching Capacity 216 Gbps
Forwarding Rate 107.1 Mpps
Ports 24 x Gigabit Ethernet, 2 x 10G SFP+

Product Features

  • Enhanced security through advanced features like 802.1x and Access Control Lists (ACLs)
  • Energy-efficient design with Cisco EnergyWise technology
  • Dual redundant power supplies for improved reliability
  • Easy management via Cisco Network Assistant
  • Advanced QoS features to prioritize critical traffic

Product Applications

  • Ideal for small to medium-sized businesses looking to deploy a scalable and secure network
  • Perfect for high-traffic environments such as financial institutions and educational campuses
  • Suitable for deployment in remote branch offices requiring reliable and simplified management

Supported Options

Accessory Model
Cisco SFP+ Transceiver SFP-10G-SR
Redundant Power Supply PWR-RPS2300
Rack Mount Kit RCKMNT-1RU

Compare to Similar Items

Model Differences
C2960X-24PS-L Includes PoE support, 370W PoE budget
C2960X-48TD-L Offers 48 GigE ports
C3560CX-12PD-S Compact form factor, fanless design

Description

C1-C2960X-24TD-L Overview

The Cisco ONE Catalyst 2960-X (C1-C2960X-24TD-L) is a versatile and efficient networking solution designed to meet the high-performance demands of modern enterprises. It features 24 Gigabit Ethernet ports and 2 x 10G SFP+ uplinks, making it ideal for robust, scalable network environments. With its LAN Base software, this switch offers enhanced security and manageability, ensuring a reliable and secure network operation.
