C1-C2960X-24TS-L
In Stock
Quick Spec
| Model | C1-C2960X-24TS-L |
| Ports | 24 x Gigabit Ethernet |
| Uplinks | 4 x 1G SFP |
| Software Image | LAN Base |
| Switching Capacity | 216 Gbps |
Product Features
- Enhanced security with features such as 802.1x, DHCP Snooping, and IP Source Guard
- Energy-efficient design with Energy Efficient Ethernet (EEE) technology for reduced power consumption
- Flexible NetFlow for detailed network traffic visibility
- Stackable architecture with up to 8 switches per stack
- Zero-Touch Provisioning (ZTP) for simplified network deployment and configuration
Product Applications
- Ideal for use in enterprise branch offices requiring LAN connectivity and advanced security features
- Suitable for small to mid-sized business networks seeking scalability and efficient management
- Perfect for educational institutions needing high-performance and reliable network infrastructure
Supported Options
| Power Supply | PWR-C2-250WAC |
| Stack Module | C2960X-STACK |
| SFP Transceiver | GLC-SX-MMD |
Compare to Similar Items
| Model | Differences |
| WS-C2960X-24TD-L | Includes 2 x 10G SFP+ uplinks instead of 4 x 1G SFP |
| C1-C2960X-48TS-L | Provides 48 x Gigabit Ethernet ports instead of 24 |
| WS-C2960X-24PSQ-L | Features PoE+ support with 370W power budget |
Description

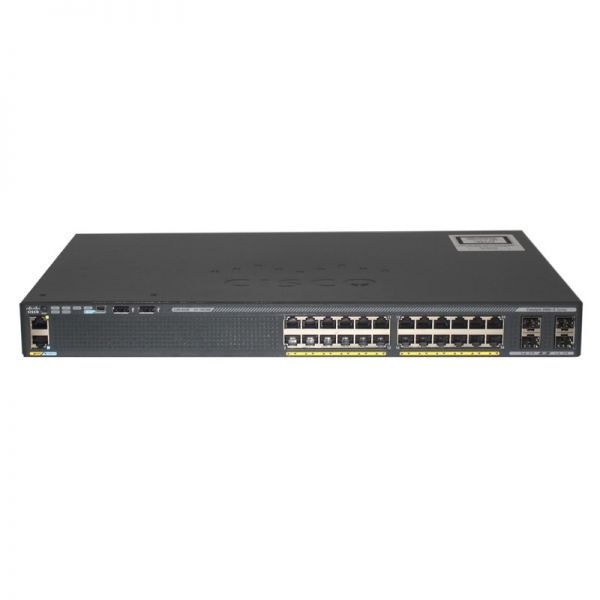

C1-C2960X-24TS-L Overview
The Cisco ONE Catalyst 2960-X model C1-C2960X-24TS-L is a highly reliable, scalable, and robust solution designed for small to mid-sized businesses requiring comprehensive network management capabilities. This switch offers 24 Gigabit Ethernet ports and 4 x 1G SFP uplinks, underpinned by Cisco’s LAN Base software for seamless operation and extensive feature support.
C1-C2960X-24TS-L Specification
C1-C2960X-24TS-L Specifications |
|
| Brand | Cisco |
| Product Name | Cisco ONE Catalyst 2960-X |
| Model Number | C1-C2960X-24TS-L |
| Ports | 24 Gigabit Ethernet |
| Uplink Interfaces | 4 x 1G SFP |
| Software | LAN Base |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 107.1 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| Maximum VLANs | 4094 |
| MAC Address Table Size | 16K |
| Jumbo Frame Support | Yes, up to 9216 bytes |
| Dimensions | 45 mm x 445 mm x 279 mm |
| Power Supply | Single, internal, fixed power supply |
| Redundant Power Supply | Optional |
| Operating Temperature | 0 to 45??C (32 to 113??F) |
| Storage Temperature | -25 to 70??C (-13 to 158??F) |
| Operating Humidity | 10% to 95% non-condensing |
| MTBF | 348,280 hours |
| Layer Supported | Layer 2 and Layer 3 |
| Manageability | Web GUI, CLI, SNMP |
