C6800-SUP6T-XL=
In Stock
Quick Specs

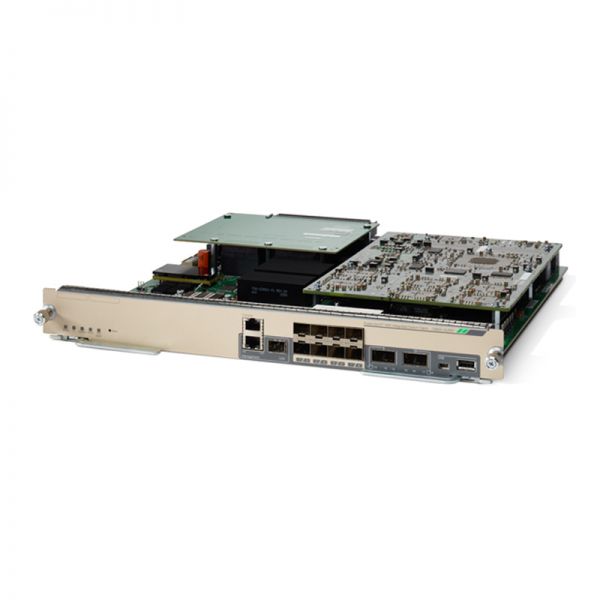

Figure 1 shows the appearance of C6800-SUP6T-XL=.
Table 1 shows the Quick Specs.
| Product Code | C6800-SUP6T= |
| Uplink ports | ·8 x 1-Gb/10-Gb Small Form Factor Pluggable Plus (SFP+) ports ·2 x 40-Gb QSFP ports |
| Console ports | ·RJ-45 serial ·USB mini B USB console ·RJ-45 management Ethernet port ·SFP fiber management port |
| Software packages | ·IP Services ·Advanced Enterprise |
| DRAM | 4-GB DDR3 for Standard and XL |
| Bootdisk | 4 GB (eUSB) |
| Switch fabric | 6-Tbps crossbar switch fabric with 28 fabric channels |
| Service Modules | No Service Modules are supported |
| Software compatibility | Cisco IOS Software Release 15.3(1)SY and future releases |
| Slot requirements | Occupies the Supervisor slots as follows:
·3-slot E-chassis – slots 1 and 2 |
| Routes | Up to 1024K (IPv4)
Up to 512K (IPv6) |
| EtherChannel hash | 8 bits |
| Onboard memory | 4 GB |
| MAC entries | 128K |
| Receive and transmit queues | Default: 1p7q4t
Configurable: 2p6q4t |
| Port security | Yes |
| Power consumption | ·Standard: 341 W maximum ·XL: 354 W maximum |
| Physical Dimensions (H x W x D) | 1.73 x 14.4 x 16 in (4.4 x 36.6 x 40.6 cm) |
| Weight | 11.64 lbs,11.73 lbs (XL) |
Product Details
Figure 2 shows the front view of C6800-SUP6T-XL=.
Note:
| ① | Improved Switch Fabric Provides 440G/slot in C6807-XL |
| ② | Fiber/Copper Management ports |
| ③ | 2 x40G(QSFP) and 8 x10G(SFP+)Uplinks- |
| ④ | High-Performance Control Plane with 2.5GHz CPU |
The Accessories
Table 2 shows the recommended elements for the C6800-SUP6T-XL=.
| Category | Model | Description |
| QSFP Options
|
QSFP-4SFP10G-CU5M | QSFP to 4xSFP10G Passive Copper Splitter Cable, 5m |
| QSFP-40G-LR4 | QSFP 40GBASE-LR4 OTN Transceiver, LC, 10KM | |
| 10G SFP Options
|
SFP-10G-AOC3M | 10GBASE Active Optical SFP+ Cable, 3M |
| SFP-H10GB-CU5M | 10GBASE-CU SFP+ Cable 5 Meter | |
| GLC Options
|
GLC-BX-U | 1000BASE-BX SFP, 1310NM |
| GLC-LH-SMD | CiscoGLC-LH-SMD1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
Compare to Similar Items
Table 3 shows the comparison of C6800-SUP6T-XL= and C6800-SUP6T=.
| Model | C6800-SUP6T-XL= | C6800-SUP6T= |
| Uplink ports | ·8 x 1-Gb/10-Gb Small Form Factor Pluggable Plus (SFP+) ports ·2 x 40-Gb QSFP ports |
·8 x 1-Gb/10-Gb Small Form Factor Pluggable Plus (SFP+) ports ·2 x 40-Gb QSFP ports |
| MAC entries | 128K | 128K |
| Routes | Up to 1024K (IPv4)
Up to 512K (IPv6) |
256K (IPv4)
128K (IPv6) |
| ACL entries | 256K shared for QoS and security | 64K shared for QoS and security |
| Security ACL entries | 256K shared for QoS and security | 64K shared for QoS and security |
| Port ACL | 8K | 8K |
Description
C6800-SUP6T-XL= Overview
C6800-SUP6T-XL= is Cisco Catalyst 6800 Series Supervisor Engine 6T XL Spare.Catalyst 6800 Sup6T (440G/slot) with 8x10GE, 2x40GE (XL).
C6800-SUP6T-XL= Specification
C6800-SUP6T-XL= Specification |
|
| Chassis compatibility | ● 6500 E-Series*: Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513-E
● 6800 Series: Cisco Catalyst 6807-XL |
| Switch fabric | ● 6-Tbps crossbar switch fabric with 28 fabric channels |
| Line card compatibility | ● C6800-8P10G, C6800-8P10G-XL
● C6800-16P10G, C6800-16P10G-XL ● C6800-32P10G, C6800-32P10G-XL ● C6800-48P-SFP, C6800-48P-SFP-XL ● C6800-48P-TX, C6800-48P-TX-XL ● WS-X6904-40G-2T, WS-X6904-40G-2TXL ● WS-X6908-10G-2T, WS-X6908-10G-2TXL ● WS-X6824-SFP-2T, WS-X6824-SFP-2TXL ● WS-X6848-SFP-2T, WS-X6848-SFP-2TXL ● WS-X6848-TX-2T, WS-X6848-TX-2TXL ● WS-X6816-10T-2T, WS-X6816-10T-2TXL ● WS-X6816-10G-2T, WS-X6816-10G-2TXL
With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-A, WS-F6k-DFC4-AXL) ● WS-X6704-10GE ● WS-X6724-SFP ● WS-X6748-SFP ● WS-X6748-GE-TX
With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-E, WS-F6k-DFC4-EXL) ● WS-X6716-10GE ● WS-X6716-10T |
| Service Modules | No Service Modules are supported |
| Supported IA clients | ● C6800IA-48TD – 48-port data-only IA
● C6800IA-48FPD – 48-port PoE/PoE+ ● C6800IA-48FPDR – 48-port PoE/PoE+ ● WS-C3560CX-12PD-S – 12-port PoE, 8-port PoE+ ● WS-C3560CX-8XPD-S – 8-port PoE |
| Slot requirements | Occupies the Supervisor slots as follows:
● 3-slot E-chassis – slots 1 and 2 ● 4-slot E-chassis – slots 1 and 2 ● 6-slot E-chassis – slots 5 and 6 ● 7-slot 6807-XL chassis – slots 3 and 4 ● 9-slot V-E chassis – slots 5 and 6 ● 9-slot E-chassis – slots 5 and 6 ● 13-slot E-chassis – slots 7 and 8 |
| Software compatibility | ● Cisco IOS® Software Release 15.3(1)SY and future releases |
| Software packages | ● IP Services
● Advanced Enterprise |
| Mgmt0 | ● RJ45/SFP replaces the connectivity management processor (CMP) |
| DRAM | ● 4-GB DDR3 for Standard and XL |
| NVRAM | ● 4 MB |
| Bootdisk | ● 4 GB (eUSB) |
| Disk 0 | ● USB type A host drive |
| USB console port | ● USB type B mini |
| Management LED | ● Blue Beacon LED |
| Uplink ports | ● 8 x 1-Gb/10-Gb Small Form Factor Pluggable Plus (SFP+) ports
● 2 x 40-Gb QSFP ports |
| Console ports | ● RJ-45 serial
● USB mini B USB console ● RJ-45 management Ethernet port ● SFP fiber management port |
| Reliability and availability | ● Stateful Switchover + Nonstop Forwarding (SSO+NSF)
● Fast Software Upgrade (FSU) ● Enhanced Fast Software Upgrade (EFSU) – (Single Box, 2 Supervisors) ● In-Service Software Upgrade (ISSU) – (VSS, VS4O) ● Online insertion and removal (OIR) hot swap of power supplies, modules, fan trays, supervisors |
| Network management | ● Cisco Prime™ Infrastructure
● Cisco Application Policy Infrastructure Controller – Enterprise Module (APIC-EM) ● Simple Network Management Protocol (SNMP), Remote Monitoring (RMON) |
| Physical specifications | ● (H x W x D): 1.73 x 14.4 x 16 in (4.4 x 36.6 x 40.6 cm)
● Weight: 11.64 lbs, 11.73 lbs (XL) |
| Power consumption | ● Standard: 341 W maximum
● XL: 354 W maximum |
| ECC | ● ECC protection support |
| Environmental conditions | ● Operating temperature: 32 to 104°F (0 to 40°C)
● Storage temperature: -40 to 167°F (-40 to 75°C) ● Relative humidity: 10 to 90 percent, noncondensing |
