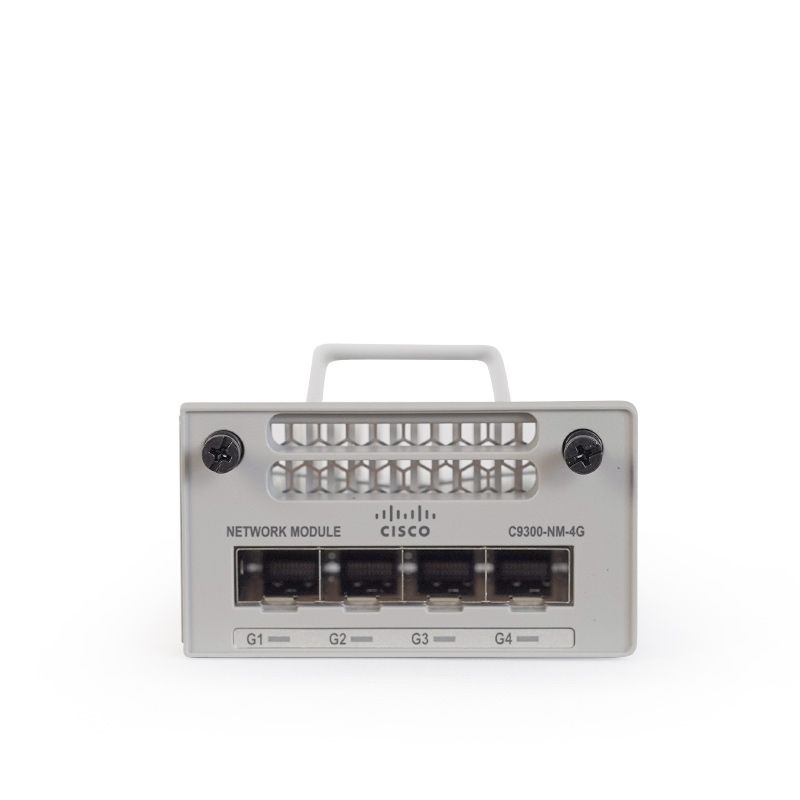

C9300-NM-4G

Model: C9300-NM-4G - Catalyst 9300 Series Modules & Cards
In Stock
Login To See Price
Categories: ,

Quick Spec

Table 1 shows the quick spec.

Part Number C9300-NM-4G
Product Description 9300 Series 4x 1G Network Module
Supported Devices Cisco Catalyst 9300 Series Switch

Compare to Similar Items

Table 2shows the comparison between C9300-NM-4Gand C9300-NM-2Q.

Product Code C9300-NM-4G C9300-NM-2Q
Product Description 9300 Series 4x 1G Network Module Catalyst 9300 2 x 40GE Network Module
Supported Devices Cisco Catalyst 9300 Series Switch Cisco Catalyst 9300 Series Switch

Description

C9300-NM-4G Overview

C9300-NM-4G is thesupport optional network modules for uplink portsof the Cisco Catalyst 9300 Series Switches. The default switch configuration does not include the network module.

C9300-NM-4G Specification

C9300-NM-4G Specification
Part Number C9300-NM-4G
Product Description Catalyst 9300 4 x 1GE Network Module
Supported Devices Cisco Catalyst 9300 Series Switch

Reviews

There are no reviews yet.

Be the first to review “C9300-NM-4G”

Your email address will not be published. Required fields are marked *
