C9600-LC-48TX=
In Stock
Quick Spec
Table 1 shows the quick spec of C9600-LC-48TX=.
| Product Type: | Line card |
| Compatibility: | Cisco Catalyst 9600 Series Switches |
| Ports: | 48 x copper Ethernet |
Product Features
- ● High-performance line card
- ● Designed for use with Cisco Catalyst 9600 Series Switches
- ● 48 ports of copper Ethernet connectivity
- ● Supports various Ethernet speeds and technologies
Product Applications
- ● Designed for use with Cisco Catalyst 9600 Series Switches
- ● Provides high-performance Ethernet connectivity for network devices
- ● Ideal for large-scale network environments
- ● Suitable for use in data centers, server rooms, and other network environments
- ● Can be used in various industries, including finance, healthcare, education, and more
Supported Options
Table 2 shows the supported options of C9600-LC-48TX=.
| Product Name: | C9600-LC-48TX= |
| Supported Devices: | Cisco Catalyst 9600 Series Switches |
| Compatible Products: | Cisco Catalyst 9600 Series Switches |
Compare to Similar Items
Table 3 shows the comparison to similar items of C9600-LC-48TX=.
| Model | Compatibility | Ports | Speeds |
|---|---|---|---|

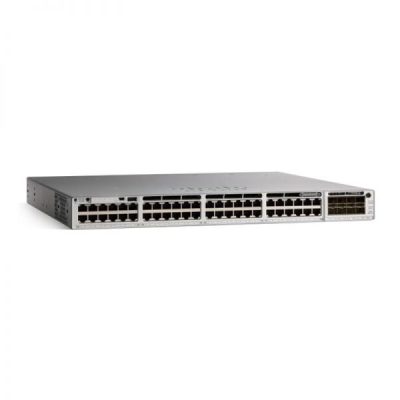

| C9500-48T | Cisco Catalyst 9500 Series Switches | 48 x copper Ethernet | 10G |

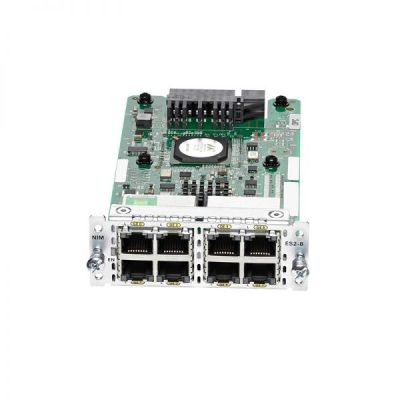

| C9300-NM-8TX | Cisco Catalyst 9300 Series Switches | 8 x copper Ethernet | 10G |
| C9200-NM-4T | Cisco Catalyst 9200 Series Switches | 4 x copper Ethernet | 10G |
Description
C9600-LC-48TX= Overview

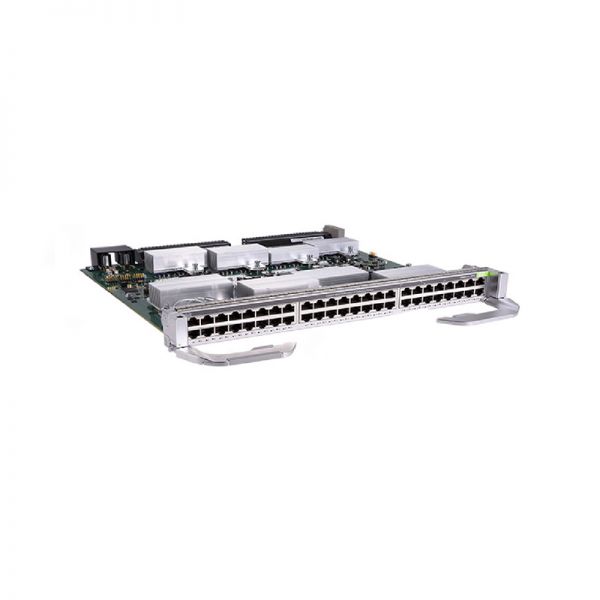

The Cisco C9600-LC-48TX= is a line card for the Cisco Catalyst 9600 Series Switches, offering 48 ports of copper Ethernet connectivity.
C9600-LC-48TX= Specification
C9600-LC-48TX= Specifications |
|
| Product Name | Cisco Catalyst 9600 Series 48-Port Copper |
| Product Type | Line card |
| Compatibility | Cisco Catalyst 9600 Series switches |
| Ports | 48 x 10/100/1000 Gigabit Ethernet |
| Data Transfer Rate | Up to 1 Gbps per port |
| Form Factor | Plug-in module |
| Dimensions | 16.89 x 15.28 x 1.73 inches (42.9 x 38.81 x 4.39 cm) |
| Weight | 14.55 lb (6.60 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Humidity Range | 10% to 90% non-condensing |
| MTBF | 634,784 hours |
| Forwarding Performance | Up to 480 Gbps |
| Packet Buffer Memory | 32 MB |
| Latency | Less than 3.3 microseconds (64-byte packets) |
| MAC Addresses | 256,000 |
| Jumbo Frame Support | Up to 9216 bytes |
| Redundancy | Hot standby |
| Standards Compliance | RoHS, FCC Part 15 A, UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950-1, EN 55024, EN 55022 Class A, CISPR 22 Class A, CISPR 24, EN300 386, VCCI Class A, AS/NZS CISPR 22 Class A, ETSI EN 300 386, KN 24, KN 22 |
