CISCO892-K9
In Stock
Quick Spec
Table 1 shows the quick spec.
| Product Code | CISCO892-K9 |
| Description | Cisco 892 Gigabit Ethernet security router |
| Default and maximum DRAM | 768 MB |
| Default and maximum flash memory | 256 MB |
| WAN | 1-port GE
1-port FE |
| LAN switch | 8-port 10-/100-Mbps managed switch |
| Physical dimensions and weight | Product dimensions:
Nonwireless models:
|
Product Details

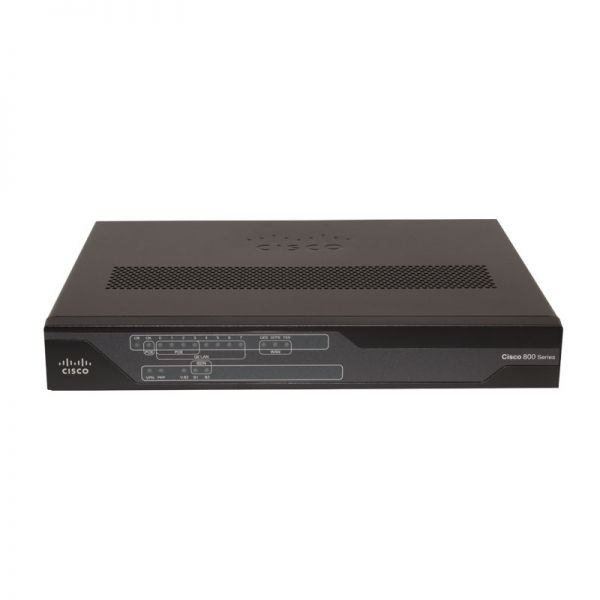

Figure 1 shows the front panel of CISCO892-K9.
Figure 2 shows the back panel of CISCO892-K9.
Compare to Similar Items
Table 2 shows the comparison between CISCO892-K9 and CISCO892W-AGN-E-K9.
| Product Code | CISCO892-K9 | CISCO892W-AGN-E-K9 |
| Description | Cisco 892 Gigabit Ethernet security router | Cisco 892W Gigabit Ethernet security router with802.11n,ETSI compliant |
| Default and maximum DRAM | 768 MB | 768 MB |
| Default and maximum flash memory | 256 MB | 256 MB |
| Physical dimensions and weight | Product dimensions:
Nonwireless models:
|
Product dimensions:
Wireless models:
|
Description
CISCO892-K9 Overview
Cisco® 890 Series Integrated Services Router CISCO892-K9 combine Internet access, comprehensive security, and wireless services in a single, secure device that is easy to deploy and manage. The best-in-class Cisco 890 Series architecture is specifically designed to deliver high performance with concurrent services, business continuity, and investment protection for enterprise small branch offices and service provider-managed services applications.
CISCO892-K9 Specification
CISCO892-K9 Specification |
|
| Product number | CISCO892-K9 |
| Description | Cisco 892 Gigabit Ethernet security router |
| Default and maximum DRAM | ● 512 and 768 MB, respectively, on Cisco 891 and 892 Series data models; upgrade option available |
| Default and maximum flash memory | ● 256 on all Cisco 890 models; not upgradable |
| WAN | 1-port GE
1-port FE |
| LAN switch | 8-port 10-/100-Mbps managed switch |
| Separate console and auxiliary ports | ● RJ-45 |
| USB 2.0 | ● Two USB 2.0 ports available on Cisco 891, 892, and 892F models
● One USB 2.0 port available on Cisco 892FSP, 896VA, 897VA, 898EA, and 891F ● USB devices supported: ◦ USB eTokens on Cisco 891, 892, and 892F only ◦ USB flash memory |
| Inline PoE | ● Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af compliant and Cisco PoE compliant
● No PoE support on Cisco 892FSP |
| Wireless specifications | 2.4 and 5 GHz |
| Data rates supported | ● 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
● 802.11b: 1, 2, 5.5, 6, 9, and 11 Mbps ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps ● 802.11n: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, and m0-m15 |
| Maximum transmit power (2-channel aggregate) | ● 802.11a: 15dBm
● 802.11b: 20 dBm ● 802.11g: 17 dBm ● 802.11n: 16 dBm Note: Maximum power setting is subject to change by channel and by region, depending on regulations |
| Physical dimensions and weight | Product dimensions:
Nonwireless models: ● H x W x D = 1.9 x 12.8 x 9.8 in. (4.8 x 32.5 x 24.9 cm) (includes rubber feet) ● H x W x D = 1.75 x 12.8 x 9.8 in. (4.5 x 32.5 x 24.9 cm) (without rubber feet) ● Weight: 5.5 lb (2.5 kg) maximum |
| External power supply | Product power specifications:
AC input voltage: Universal 100 to 240 VAC Frequency: 50 to 60 Hz Maximum output power: 60W Output voltages: 12 VDC Optional POE: Separate 80W POE power supply for Cisco 891 and 892 ISRs Single 125W power supply required for Cisco 896, 897, 898 and 891F for router and PoE External output voltage: 48 VDC |
| Approvals and compliance | ● Emission
● 47 CFR Part 15: 2006 ◦ CISPR22: 2005 ◦ EN300386: V1.3.3: 2005 ◦ EN55022: 2006 ◦ EN61000-3-2: 2000 [Inc amd 1 & 2] ◦ EN61000-3-3: 1995 [+ amd 1: 2001] ◦ ICES-003 Issue 4: 2004 ◦ KN 22: 2005 ◦ VCCI: V-3/2006.04 ● Immunity ● CISPR24: 1997 [+ amd 1 & 2] ◦ EN300386: V1.3.3: 2005 ◦ EN50082-1: 1992 ◦ EN50082-1: 1997 ◦ EN55024: 1998 [+ amd 1 & 2] ◦ EN61000-6-1: 2001 |
| Environmental operating range | ● Nonoperating temperature: -4 to 149°F (-0 to 65°C)
● Nonoperating humidity: 5 to 95% relative humidity (noncondensing) ● Nonoperating altitude: 0 to 15,000 ft (0 to 4570m) ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 85% relative humidity (noncondensing) ● Operating altitude: 0 to 10,000 ft (0 to 3000m) |
