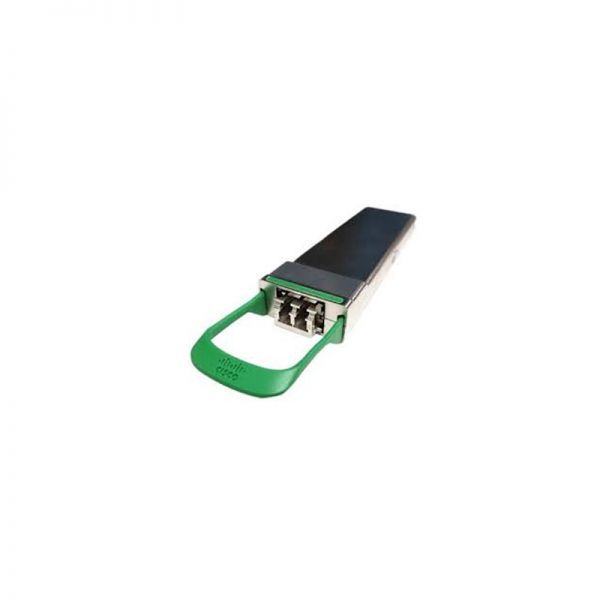

CPAK-100G-CWDM4=
In Stock
Quick Specs
Table 1shows the Quick Specs.
| Product Code | CPAK-100G-CWDM4= |
| Description | 100GBASE-CWDM4 Cisco CPAK Module for SMF |
| Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
| Wavelength (nm) | 1271, 1291, 1311, 1331 |
| Cable Type | SMF Duplex |
| Core Size (Microns) | 9-micron coreSMF per G.652 |
| Modal Bandwidth (MHz*km) | \ |
| Cable Distance | 2 km |
Product Details
Table 2 Cisco CPAK 100GBASE module features and benefits
| Requirement | Cisco CPAK Module Supporting Feature |
| Accommodate ever-growing bandwidth requirements | Up to 10 100-Gigabit Ethernet connections deliver as much as 1 Tbps of front-panel bandwidth |
|
Control costs |
Form factor consumes 40% less power than CFP2 and 70% less power than CFP form factors |
|
Real estate conservation |
Minimal footprint allows 20% greater port density and bandwidth than competing products |
|
High availability for business continuity |
Hot-swappable input/output device plugs into a Cisco CPAK-module-based switch, router, or optical platform port |
|
Accommodate a variety of distance and fiber type requirements |
Flexible interface choices |
|
Investment protection, affordable migration to higher bandwidth |
Support for a pay-as-you-grow model
Can plug any Cisco 100-Gbps, 40-Gbps, and 10-Gbps line cards into Cisco CPAK modules (supports the Cisco AnyPort solution) |
|
Manage performance |
Digital Optical Monitoring (DOM) support |
|
Proper functioning and high performance with all Cisco platforms |
Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco |
|
Standards compliance for equipment flexibility and choice |
Interoperability with any IEEE-compliant: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-SR10, 40GBASE-SR4, 10GBASE-SR, 10GBASE-LR |
Platform support
Cisco CPAK 100GBASE modules are supported on Cisco high-end switches, routers, and transport equipment:
ASR 9000 Series Router
CRS-X Carrier Routing System
NCS 2000, 4000, and 6000 Series Routers
Nexus 7000 and 7700 Series Switches
Cisco ONS Transport PlatformCompare to Similar Items
Compare to Similar Items
Table 3shows the comparison.
| Parameters | CPAK-100G-CWDM4= | CPAK-100GE-LR4= | CPAK-100G-ER4L= | CPAK-100G-LR4= | CPAK-100G-PSM4= | CPAK-100G-SR4= | CPAK-100G-SR10= |
| Description | 100GBASE-CWDM4 Cisco CPAK Module for SMF | 100GBASE-LR4 Cisco CPAK Module for SMF (terminated with LC Connectors) | 100GBASE-ER4 Lite Cisco CPAK Module for SMF | 100GBASE-LR4 Cisco CPAK Module for SMF (terminated with LC Connectors) | 100GBASE PSM4 Cisco CPAK Module for SMF | 100GBASE-SR4 Cisco CPAK Module for MMF | 100GBASE-SR10 Cisco CPAK Module for MMF |
| Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
| Wavelength (nm) | 1271, 1291, 1311, 1331 | 1310 | 1310 | 1310 | 1295 to 1325 | 850 | 850 |
| Cable Type | SMF Duplex | SMF Duplex | SMF Duplex | SMF Duplex | SMF (12 fibers) | MMF (12 fibers) | MMF (12 fibers) |
| Core Size (Microns) | 9-micron coreSMF per G.652 | 9-micron coreSMF per G.652 | 9-micron coreSMF per G.652 | 9-micron coreSMF per G.652 | 9-micron coreSMF per G.652 | 50.0
50.0 |
50.0
50.0 |
| Modal Bandwidth (MHz*km) | \ | \ | \ | \ | \ | 2000 (OM3)
4700 (OM4) |
2000 (OM3)
4700 (OM4) |
| Cable Distance | 2 km | 10 km | 25 km | 10 km | 500 m | 70m
100m |
100m
150m |
| Supported Mode | 1x100G | 1x100G | 1x100G | 1x100G | 1x100G | 1x100G | 1x100G
2x40G 10x10G |
| Supported Protocol | IEEE 802.3ba | IEEE 802.3ba | IEEE 802.3ba
ITU OTU4 |
IEEE 802.3ba
ITU OTU4 |
IEEE 802.3ba | IEEE 802.3ba | 1x100G:
IEEE 802.3ba ITU OTU4 2x40G: IEEE 802.3ba ITU OTU3 10x10G: IEEE 802.3ae FC ITU OTU2 ITU OTU1e ITU OTU2e |
Description
CPAK-100G-CWDM4= Overview
Cisco CPAK 100GBASE fiber modules for Cisco switches and routers offer a selection of high-density 100-Gbps connectivity solutions. The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.
CPAK-100G-CWDM4= Specification
CPAK-100G-CWDM4= Specification |
|
| Description | 100GBASE-CWDM4 Cisco CPAK Module for SMF |
| Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Cisco CPAK port cabling specifications |
|
| Wavelength (nm) | 1271, 1291, 1311, 1331 |
| Cable Type | SMF Duplex |
| Core Size (Microns) | 9-micron core SMF per G.652 |
| Modal Bandwidth (MHz*km) | \ |
| Cable Distance | 2 km |
|
Optical transmit and receive specifications |
|
| Type | 100GBASE CWDM4 SMF |
| Transmit Power | Max:+2.5 per lane
Min:-6.5 per lane |
| Receive Power (dBm) | Max:+2.5 per lane
Min:-10 per lane |
| Transmit and Receive Center Wavelength Range (nm) | 100GBASE CWDM4 SMF |
| Supported Mode | 1x100G |
| Supported Protocol | IEEE 802.3ba |
|
Environmental conditions and power requirements |
|
| Storage temperature | -40 to 85° C (-40 to 185° F) |
| Operating temperature | 0 to 70° C (32 to 158° F) |
| Power consumption | At 70° C: <9.0 W maximum |
