CPAK-100G-ER4F
In Stock
CPAK-100G-ER4F Product Highlights
- ● Supports 100G data rates
- ● 40km reach
- ● CPAK form factor
- ● Low power consumption
- ● High reliability
Product Features Comparison
| Model | Data Rate | Reach | Form Factor | Wavelength | Connector | Power Consumption | Temperature Range |
|---|---|---|---|---|---|---|---|
| CPAK-100G-ER4F | 100G | 40km | CPAK | 1310nm | LC | Low | -10??C to 70??C |
| CPAK-100G-SR10 | 100G | 100m | CPAK | 850nm | MPOM | Low | 0??C to 70??C |
| CPAK-100G-LR4 | 100G | 10km | CPAK | 1310nm | LC | Low | 0??C to 70??C |
| QSFP-100G-ER4 | 100G | 40km | QSFP | 1310nm | LC | Moderate | 0??C to 70??C |
| QSFP-100G-LR4 | 100G | 10km | QSFP | 1310nm | LC | Moderate | 0??C to 70??C |
| QSFP-100G-SR4 | 100G | 100m | QSFP | 850nm | MPOM | Moderate | 0??C to 70??C |
CPAK-100G-ER4F Product Application Scenarios
- ● Long-distance data center interconnects
- ● Metropolitan area network extensions
- ● Enterprises requiring extensive WAN coverage
Optional Add-ons
| Model | Description |
|---|---|
| CAB-C3-BLK | Cisco CPAK Power Cable, 3 meters |
| CON-SNT-ER4F | SmartNet support for CPAK-100G-ER4F |
| CPA-OPT | Optical Attenuator for CPAK modules |
Description
PAK-100G-ER4F Overview
Product Introduction

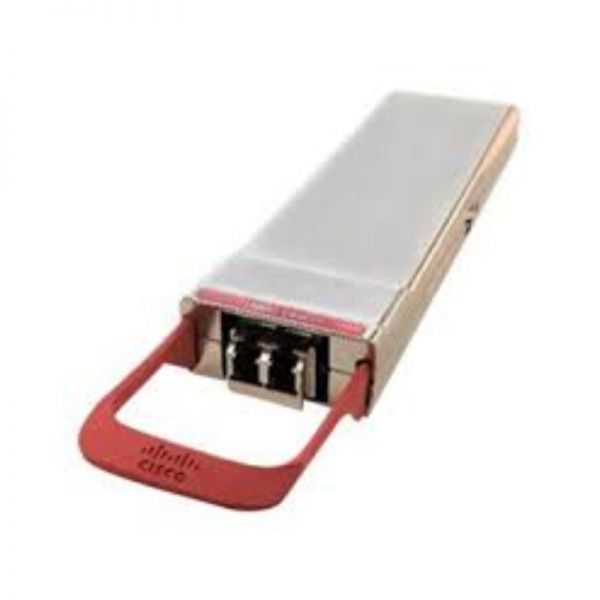

Cisco’s CPAK-100G-ER4F is a high-performance CPAK module designed for 100G applications over distances up to 40km. This solution is ideal for network engineers and procurement personnel seeking to enhance their optical infrastructure with robust and reliable long-reach transmission.
CPAK-100G-ER4F Specification
CPAK-100G-ER4F Specifications |
|
| Brand | Cisco |
| Model | CPAK-100G-ER4F |
| Product Type | CPAK Module |
| Maximum Data Rate | 100 Gbps |
| Transmission Distance | 40 km |
| Form Factor | CPAK |
| Connector Type | LC |
| Wavelength | 1295 nm, 1300 nm, 1304 nm, 1309 nm |
| Fiber Type | Single-mode |
| Power Consumption | 12W |
| Operating Temperature Range | 0??C to 70??C |
| Storage Temperature Range | -40??C to 85??C |
| Compatibility | Cisco Network Equipment |
| Protocol Support | IEEE 802.3ba, ITU-T G.959.1, OTU-4 |
| Reach | ER4F (Extended Reach) |
| Dimension | 33 x 112 x 14 mm |
| Hot Swappable | Yes |
| Power Supply | 3.3V |
| Safety Standard | Laser Class 1, IEC 60825-1 |
| MTBF | 1.2 million hours |
| RoHS Compliance | Yes |
