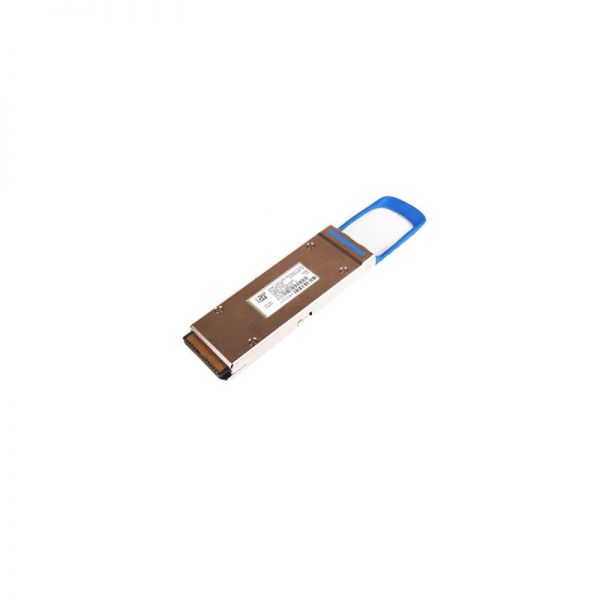

CPAK-10X10G-ERL=
Quick Specs
Table 1 shows the Quick Specs.
Product Code | CPAK-10X10G-ERL= |
Description | 10x10G-ERL Cisco CPAK Module for SMF |
Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
Wavelength (nm) | 1550 |
Cable Type | SMF (24 fibers) |
Core Size (Microns) | 9-micron coreSMF per G.652 |
Modal Bandwidth (MHz*km) | \ |
Cable Distance | 25 km |
Product Details
Table 2 Cisco CPAK 100GBASE module features and benefits
Requirement | Cisco CPAK Module Supporting Feature |
Accommodate ever-growing bandwidth requirements | Up to 10 100-Gigabit Ethernet connections deliver as much as 1 Tbps of front-panel bandwidth |
Control costs |
Form factor consumes 40% less power than CFP2 and 70% less power than CFP form factors |
Real estate conservation |
Minimal footprint allows 20% greater port density and bandwidth than competing products |
High availability for business continuity |
Hot-swappable input/output device plugs into a Cisco CPAK-module-based switch, router, or optical platform port |
Accommodate a variety of distance and fiber type requirements |
Flexible interface choices |
Investment protection, affordable migration to higher bandwidth |
Support for a pay-as-you-grow model
Can plug any Cisco 100-Gbps, 40-Gbps, and 10-Gbps line cards into Cisco CPAK modules (supports the Cisco AnyPort solution) |
Manage performance |
Digital Optical Monitoring (DOM) support |
Proper functioning and high performance with all Cisco platforms |
Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco |
Standards compliance for equipment flexibility and choice |
Interoperability with any IEEE-compliant: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-SR10, 40GBASE-SR4, 10GBASE-SR, 10GBASE-LR |
Platform support
Cisco CPAK 100GBASEmodules are supported on Cisco high-end switches, routers, and transport equipment:
ASR 9000 Series Router
CRS-X Carrier Routing System
NCS 2000, 4000, and 6000 Series Routers
Nexus 7000 and 7700 Series Switches
Cisco ONS Transport PlatformCompare to Similar Items
Table 3shows the comparison.
Parameters | CPAK-10X10G-ERL= | CPAK-10X10G-LR= |
Description | 10x10G-ERL Cisco CPAK Module for SMF | 10x10G-LR Cisco CPAK Module for SMF |
Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
Wavelength (nm) | 1550 | 1310 |
Fiber Type | SMF (24 fibers) | SMF (24 fibers) |
Core Size (microns) | 9-micron coreSMF per G.652 | 9-micron coreSMF per G.652 |
Modal Bandwidth (MHz-km) | \ | \ |
Max Distance | 25 km | 10 km |
Power consumption | At 70 C: 5.0W maximum | At 70 C: 5.0W maximum |
Description
CPAK-10X10G-ERL= Overview
Cisco CPAK 100GBASE fiber modules for Cisco switches and routers offer a selection of high-density 100-Gbps connectivity solutions. The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.
CPAK-10X10G-ERL= Specification
CPAK-10X10G-ERL= Specification |
|
Description | 10x10G-ERL Cisco CPAK Module for SMF |
Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
Cisco CPAK port cabling specifications |
|
Wavelength (nm) | 1550 |
Cable Type | SMF (24 fibers) |
Core Size (Microns) | 9-micron core SMF per G.652 |
Modal Bandwidth (MHz*km) | \ |
Cable Distance | 25 km |
Optical transmit and receive specifications |
|
Type | 1550 nm SMF |
Transmit Power | Max:+4.0 per lane
Min:-7.7 per lane |
Receive Power (dBm) | Max:+0.5 per lane
Min:-14.4 per lane |
Transmit and Receive Center Wavelength Range (nm) | Ten lanes 1530 to 1565 nm |
Supported Mode | 10x10G |
Supported Protocol | IEEE 802.3ae
FC ITU OTU2 ITU OTU1e ITU OTU2e |
Environmental conditions and power requirements |
|
Storage temperature | -40 to 85° C (-40 to 185° F) |
Operating temperature | 0 to 70° C (32 to 158° F) |
Power consumption | At 70° C: <5.0W maximum |
