CPAK-10X10G-LR=

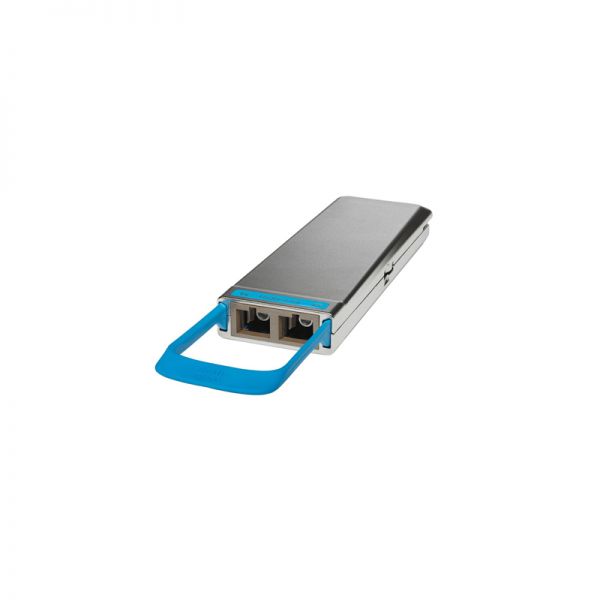

Model: CPAK-10X10G-LR= - Cisco 100 Gigabit Optical Modules
In Stock

Quick Specs

Table 1 shows the Quick Specs.

Product Code CPAK-10X10G-LR=
Description 10x10G-LR Cisco CPAK Module for SMF
Dimensions 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
Wavelength (nm) 1310
Cable Type SMF (24 fibers)
Core Size (Microns) 9-micron coreSMF per G.652
Modal Bandwidth (MHz*km) \
Cable Distance 10 km

Product Details

Table 2Cisco CPAK 100GBASE module features and benefits

Requirement Cisco CPAK Module Supporting Feature
Accommodate ever-growing bandwidth requirements Up to 10 100-Gigabit Ethernet connections deliver as much as 1 Tbps of front-panel bandwidth

Control costs

Form factor consumes 40% less power than CFP2 and 70% less power than CFP form factors

Real estate conservation

Minimal footprint allows 20% greater port density and bandwidth than competing products

High availability for business continuity

Hot-swappable input/output device plugs into a Cisco CPAK-module-based switch, router, or optical platform port

Accommodate a variety of distance and fiber type requirements

Flexible interface choices

Investment protection, affordable migration to higher bandwidth

Support for a pay-as-you-grow model

Can plug any Cisco 100-Gbps, 40-Gbps, and 10-Gbps line cards into Cisco CPAK modules (supports the Cisco AnyPort solution)

Manage performance

Digital Optical Monitoring (DOM) support

Proper functioning and high performance with all Cisco platforms

Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco

Standards compliance for equipment flexibility and choice

Interoperability with any IEEE-compliant: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-SR10, 40GBASE-SR4, 10GBASE-SR, 10GBASE-LR

Platform support

Cisco CPAK100GBASEmodules are supported on Cisco high-end switches, routers, and transport equipment:

ASR 9000 Series Router

CRS-X Carrier Routing System

NCS 2000, 4000, and 6000 Series Routers

Nexus 7000 and 7700 Series Switches

Cisco ONS Transport PlatformCompare to Similar Items

Compare to Similar Items

Table 3shows the comparison.

Parameters CPAK-10X10G-ERL= CPAK-10X10G-LR=
Description 10x10G-ERL Cisco CPAK Module for SMF 10x10G-LR Cisco CPAK Module for SMF
Dimensions 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
Wavelength (nm) 1550 1310
Fiber Type SMF (24 fibers) SMF (24 fibers)
Core Size (microns) 9-micron coreSMF per G.652 9-micron coreSMF per G.652
Modal Bandwidth (MHz-km) \ \
Max Distance 25 km 10 km
Power consumption At 70 C: 5.0W maximum At 70 C: 5.0W maximum

Description

CPAK-10X10G-LR= Overview

Cisco CPAK 100GBASE fiber modules for Cisco switches and routers offer a selection of high-density 100-Gbps connectivity solutions. The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.

CPAK-10X10G-LR= Specification

CPAK-10X10G-LR= Specification

Description 10x10G-LR Cisco CPAK Module for SMF
Dimensions 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)

Cisco CPAK port cabling specifications

Wavelength (nm) 1310
Cable Type SMF (24 fibers)
Core Size (Microns) 9-micron core SMF per G.652
Modal Bandwidth (MHz*km) \
Cable Distance 10 km

Optical transmit and receive specifications

Type 1310 nm SMF
Transmit Power Max:+0.5 per lane

Min:-8.2 per lane

Receive Power (dBm) Max:+0.5 per lane

Min:-14.4 per lane

Transmit and Receive Center Wavelength Range (nm) Ten lanes 1260 to 1355 nm
Supported Mode 10x10G
Supported Protocol IEEE 802.3ae

FC

ITU OTU2

ITU OTU1e

ITU OTU2e

Environmental conditions and power requirements

Storage temperature -40 to 85° C (-40 to 185° F)
Operating temperature 0 to 70° C (32 to 158° F)
Power consumption At 70° C: <5.0W maximum
