ISR4221-SEC/K9
In Stock
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
Cisco ISR4221-SEC/K9 |
|
Bundle |
Cisco ISR 4221 SEC Bundle with SEC lic |
|
Aggregate Throughput |
35 Mbps to 75 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
2 |
|
RJ-45-based ports |
2 |
|
SFP-based ports |
1 |
|
NIM (Network Interface Modules) slots |
2 |
|
Onboard ISC slot |
No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
|
Flash Memory |
8 GB |
|
Power-supply options |
External AC only |
|
Rack height |
1 RU |
|
Dimensions (H x W x D) |
1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm) |
|
Weight with AC PS (no modules) |
7.1 lb (3.22 kg) |
Product Details

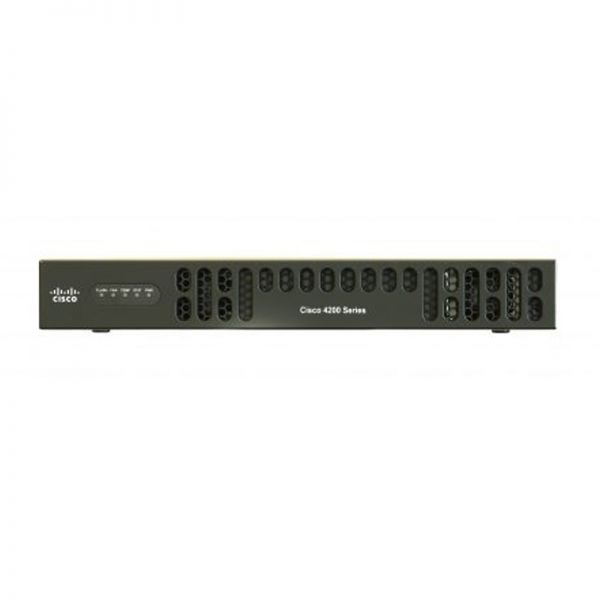

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221-SEC/K9.
·There are 4 LEDs on the front panel.
Figure 2 shows the back panel of Cisco ISR4221-SEC/K9.
Note:
|
① |
GE 0/0/0 RJ-45 (copper cable) port |
⑤ |
Console port |
|
② |
Power switch |
⑥ |
GE 0/0/1 (copper cable) port |
|
③ |
Power input connector |
⑦ |
GE 0/0/0 SFP (fiber-optic) port |
|
④ |
GE “MGMT” port (with USB port below) |
⑧ |
NIM slots |
Figure 3 shows the Security License function.
The Modules & Cards
Table 2 shows some recommended modules and cards.
|
Items |
Models |
Description |
|
Console and Auxillary Cables |
CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
Network Interface Modules |
NIM-1MFT-T1/E1 |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
NIM-ES2-4 |
Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2 |
|
|
NIM-ES2-8 |
Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM |
|
|
SFPs for On-Board GE Ports |
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
GLC-ZX-SMD |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
|
|
GLC-SX-MMD |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
Compare to Similar Items
Table 3 shows the comparison.
|
Models |
ISR4221/K9 |
ISR4221-SEC/K9 |
|
Bundle |
N/A |
Cisco ISR 4221 SEC Bundle with SEC lic |
|
Aggregate Throughput |
35 Mbps to 75 Mbps |
35 Mbps to 75 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
2 |
2 |
|
RJ-45-based ports |
2 |
2 |
|
SFP-based ports |
1 |
1 |
|
NIM slots |
2 |
2 |
|
Rack height |
1 |
1 |
Description
ISR4221-SEC/K9 Overview
ISR4221-SEC/K9 is the Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It bundles Security Bundle with Security License.
ISR4221-SEC/K9 Specification
Cisco ISR4221-SEC/K9 Specification |
|
|
Bundle |
Cisco ISR 4221 SEC Bundle with SEC lic |
|
Aggregate Throughput |
35 Mbps to 75 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
2 |
|
RJ-45-based ports |
2 |
|
SFP-based ports |
1 |
|
Enhanced service-module slots |
0 |
|
Doublewide service-module slots |
0 |
|
NIM slots |
2 |
|
OIR (all I/O modules) |
No |
|
Onboard ISC slot |
No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
4 GB |
|
Default memory DDR3 ECC DRAM (data plane) |
NA |
|
Maximum memory DDR3 ECC DRAM (data plane) |
NA |
|
Default memory DDR3 ECC DRAM (control/services plane) |
NA |
|
Maximum memory DDR3 ECC DRAM (control/services plane) |
NA |
|
Default flash memory |
8 GB |
|
Maximum flash memory |
8 GB |
|
External USB 2.0 slots (type A) |
1 |
|
USB console port -type B mini (up to 115.2 kbps) |
0 |
|
Serial console port - RJ45 (up to 115.2 kbps) |
1 (combo CON/AUX port) |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 (combo CON/AUX port) |
|
Power-supply options |
External: AC Only |
|
Redundant power supply |
N/A |
|
AC input voltage |
100 to 240 VAC autoranging |
|
AC input frequency |
47 to 63 Hz |
|
AC input current range, AC power supply (maximum) |
1.5 to 0.6A |
|
AC input surge current |
90 A peak and less than 3 Arms per half cycle |
|
Typical power (no modules) (watts) |
24 |
|
Maximum power with AC power supply (watts) |
90 |
|
Maximum power with PoE power supply (platform only) (watts) |
NA (no PoE support) |
|
Maximum endpoint PoE power available from PoE power supply (watts) |
NA (no PoE support) |
