ISR4331-SEC/K9
In Stock
Table 1 shows the Quick Specs.
| Product Code | Cisco ISR4331-SEC/K9 |
| Bundle | Security Bundle |
| Aggregate Throughput | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module (SM-X) slot | 1 |
| NIM (Network Interface Modules) slots | 2 |
| Onboard ISC slot | 1 |
| Memory | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 4 GB (default) / 16 GB (maximum) |
| Power-supply options | Internal: AC and PoE |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 44.45 x 438.15 x 438.15 mm |
| Package Weight | 12.96 Kg |
Product Details

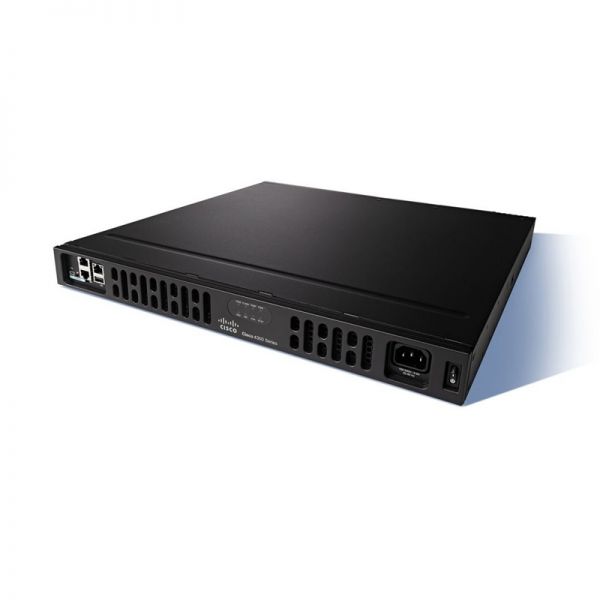

Figure 2 shows the front panel of Cisco ISR4331-SEC/K9.
Note:
| ① | USB Type B mini port | ⑤ | Management port |
| ② | Serial console port | ⑥ | LEDs |
| ③ | USB Type A port | ⑦ | AC Power |
| ④ | AUX Port | ⑧ | Power switch |
· The LEDs include eight indicators: POE0, FLASH, TEMP, PWR, SSD, ISC, FAN and STAT.
Figure 3 shows the back panel of Cisco ISR4331-SEC/K9.
Note:
| ① | RJ45 Ports | ③ | NIM Slots |
| ② | SFP Ports | ④ | SM-X Slot |
·① & ② : These four ports include one combo port, one RJ45 port and one SFP port. It means the RJ45 and SFP in the combo port can’t be used at the same time.
· NIM slots support one double-wide or two signal-wide modules.
· An SM-X slot can be converted into a Network Interface Module (NIM) slot using an optional carrier card.
The Modules, Cards and Accessories
Table 2 shows some recommended modules, cards and accessories of Cisco ISR4331-SEC/K9.
|
Items |
Models |
Descriptions |
|
Console and Auxillary Cables |
CAB-AUX-RJ45 |
Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
|
CAB-ETH-S-RJ45 |
Cisco Router Cable CAB-ETH-S-RJ45 |
|
|
CAB-CONSOLE-RJ45 |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
|
CAB-CONSOLE-USB |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
|
Network Interface Modules |
NIM-1MFT-T1/E1 |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
NIM-2CE1T1-PRI |
Cisco Multiflex Trunk Voice and WAN network interface module |
|
|
NIM-4E/M |
Analog voice network interface card (ear and mouth) |
|
|
NIM-2FXS |
Cisco Analog voice network interface card NIM-2FXS |
|
|
NIM-2FXS/4FXO |
Cisco Analog voice network interface card NIM-2FXS/4FXO |
|
|
NIM-8MFT-T1/E1 |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
|
SFPs for On-Board GE Ports |
GLC-SX-MMD |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
|
GLC-ZX-SMD |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Item
Table 3 shows the comparison between two similar items.
| Models | Cisco ISR4331/K9 | ISR4331-SEC/K9 |
| Bundle | None | Security Bundle |
| Aggregate Throughput | 100 Mbps to 300 Mbps | 100 Mbps to 300 Mbps |
| Total onboard WAN or
LAN 10/100/1000 ports |
3 | 3 |
| RJ-45-based ports | 2 | 2 |
| SFP-based ports | 2 | 2 |
| Enhanced service-module slots | 1 | 1 |
| NIM slots | 2 | 2 |
| Onboard ISC slot | 1 | 1 |
| Rack height | 1 | 1 |
Description
Cisco ISR4331-SEC/K9 is the Cisco ISR4331/k9 router with Security Bundle. Its other specifications are the same as ISR4331/k9.
ISR4331-SEC/K9 Specification
Cisco ISR4331-SEC/K9 Specification |
|
| Type | Cisco ISR4331/K9 with Security Bundle |
| Aggregate Throughput | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module slots | 1 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
(Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45
(up to 115.2 kbps) |
1 |
| Power-supply options | Internal: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 42 |
| Maximum power with AC power supply (watts) | 250 |
| Maximum power with PoE power supply (platform only) (watts) | 530 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 |
