ISR4351-V/K9
In Stock
Quick Specs

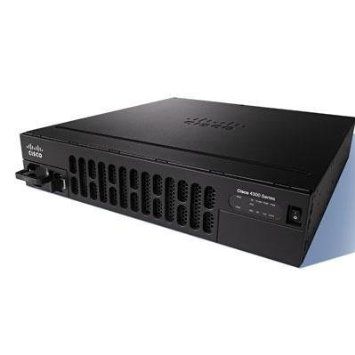

Figure 1 shows the appearance of Cisco ISR4351/K9 for reference. ISR4351-V/K9 is similar with it.
Table 1 shows the Quick Specs.
| Product Code | ISR4351-V/K9 |
| Aggregate Throughput | 200 Mbps to 400 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 3 |
| SFP-based ports | 3 |
| Enhanced service-module (SM-X) slot | 2 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| Memory | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 4 GB (default) / 16 GB (maximum) |
| Power-supply options | Internal: AC, DC (roadmap), and PoE |
| Rack height | 2 RU |
| Dimensions (H x W x D) | 43.9 x 438.15 x 507.2 mm |
Product Details
Figure 2 shows the front panel of Cisco ISR4351/K9 for reference. ISR4351-V/K9 is similar with it..
Note:
| ① | Power supply unit | ③ | Router power On/Off switch |
| ② | Router fan tray | ④ | LEDs |
·The router fan tray is hidden behind the removable bezel.
·LEDs include ten indicators.
Table 2 shows the LED descriptions.
| LEDs | Represents | Color | Description |
| PSU0 | Power Supply Unit (P0 and P1) Status | Green | PSU is on and is providing power. |
| Amber | PSU is on but with errors or in a failure condition. | ||
| Off | Power supply is turned off. | ||
| POE0 | POE PSU | Green | PoE is on and providing power. |
| Amber | PoE is in a failed condition. | ||
| Off | PoE supply is not present. | ||
| GE POE | Internal PoE Daughter Card Status | Green | PSU is installed and providing power |
| Amber | PSU is installed but in a failure condition. | ||
| Off | PSU is off. | ||
| FLASH | System Flash Status | Blinking Green | Compact flash/eUSB flash is present and currently being accessed. |
| TEMP | Temperature Status | Solid green | All temperature sensors in the system are within acceptable range. |
| Amber | One or more temperature sensors in the system are outside the acceptable range. | ||
| Off | Temperature is not being monitored. | ||
| PWR | System Power | Green | System power is on and functioning correctly. |
| Green blinking | System power is in the process of shutting down. | ||
| Amber | System power is up, but low level initialization failed. | ||
| Amber blinking | System power is up, but the system failed to come out of reset. | ||
| Off | System power is off. | ||
| SSD | mSATA Slot Status | Green | SSD mSATA is present and enabled. |
| Amber | Initialized with error. | ||
| Off | Not present. | ||
| ISC | ISC Slot Status | Green | PVDM4 is present and enabled. |
| Amber | Initialized with error. | ||
| Off | Not present. | ||
| FAN | Fan Status | Green | All fans are operating. |
| Amber | One fan has stopped working. | ||
| Blinking Amber | Two or more fans have stopped working, or the fan tray has been removed. | ||
| Off | Fans are not being monitored. | ||
| STAT | System Status | Solid green | System operating normally. |
| Blinking amber | BIOS/Rommon is booting. | ||
| Amber | BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software. | ||
| Off | System is not out of reset or BIOS image is not loadable. |
Figure 3 shows the back panel of Cisco ISR4351/K9 for reference. ISR4351-V/K9 is similar with it..
Note:
| ① | USB Type A port | ⑦ | SFP port (GE 0/0/0) |
| ② | GE management port | ⑧ | RJ-45 port (GE/0/0/2) |
| ③ | USB Type B mini port | ⑨ | NIM slots |
| ④ | Auxiliary port | ⑩ | Ground connection |
| ⑤ | Console port | Enhanced Service Module (SM-X) slot | |
| ⑥ | RJ-45 port (GE 0/0/1) | ||
·The NIMs support 2 single-wide or 1 double-wide.
The Modules, Cards, Licenses & Accessories
Table 3 shows some recommended modules, cards, licenses and several cables.
|
Items |
Models |
Descriptions |
|
Console and Auxillary Cables |
CAB-AUX-RJ45 |
Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
|
CAB-ETH-S-RJ45 |
Cisco Router Cable CAB-ETH-S-RJ45 |
|
|
CAB-CONSOLE-RJ45 |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
|
CAB-CONSOLE-USB |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
|
Licenses |
L-SL-4350-APP-K9= |
Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351 |
|
Network Interface Modules |
NIM-1MFT-T1/E1 |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
NIM-2CE1T1-PRI |
Cisco Multiflex Trunk Voice and WAN network interface module |
|
|
NIM-4E/M |
Analog voice network interface card (ear and mouth) |
|
|
NIM-2FXS |
Cisco Analog voice network interface card NIM-2FXS |
|
|
NIM-2FXS/4FXO |
Cisco Analog voice network interface card NIM-2FXS/4FXO |
|
|
NIM-8MFT-T1/E1 |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
|
SFPs for On-Board GE Ports |
GLC-SX-MMD |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
|
GLC-ZX-SMD |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Items
|
Models |
ISR4351-V/K9 |
ISR4351/K9 |
|
Description |
Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle) |
Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base) |
|
Aggregate Throughput |
200 Mbps to 400 Mbps |
200 Mbps to 400 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
3 |
3 |
|
RJ-45-based ports |
3 |
3 |
|
SFP-based ports |
3 |
3 |
|
Enhanced service-module slots |
2 |
2 |
|
NIM slots |
3 |
3 |
|
Onboard ISC slot |
1 |
1 |
|
Rack height |
2 |
2 |
Description
ISR4351-V/K9 Overview
Cisco ISR4351-V/K9 is ideally designed for the mid-size or even large enterprise branch environment, deliver advanced services and unprecdent level of WAN intelligence with VOIP features enabled.Scalability, High-performance, Network Services, Security and smart router is made to run multiple services.Advanced network services enable the branch to utilize the WAN intelligently is really what ISR4351/K9 all about.With feature like , Voice, AVC, performance routing (PfR), WAAS make this platform obviously more than a router, moreover, the Cisco Integrated Services Router 4351 include supporting OnePk, AppNav, making the platform easier to scale the network and application integration.
Performance is the key to enabling advanced branch services or scaling across the enterprise. With IOS XE and dedicate control, data, and service CPUs, these platform is unmatched in the industry.ISR 4351 delivering 200Mbps-400Mbps performance on demand,with pay-as-you-grow performance, you can increase forwarding capacity when needed, so the platform performance growth with your business, you only pay for the performance you need. This greatly simplifies the portfolio with only two platforms needed to cover 200Mpbs through 400Mbps performance levels. The Cisco Integrated Service router 4351 includes another industry first, which support service containers, these pluggable visual machines utilize dedicated CPU, memory and storage within platform for tightly couple the network services without needs for additional modules.
ISR4351-V/K9 Specification
ISR4351-V/K9 Specification |
|
| Description | Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle) |
| Aggregate Throughput | 200 Mbps to 400 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 3 |
| SFP-based ports | 3 |
| Enhanced service-module slots | 2 |
| Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
(Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45
(up to 115.2 kbps) |
1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | 60 A peak and less than 12 Arms per half cycle |
| Typical power (no modules) (watts) | 48 |
| Maximum power with AC power supply (watts) | 430 |
| Maximum power with PoE power supply (platform only) (watts) | 990 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 |
