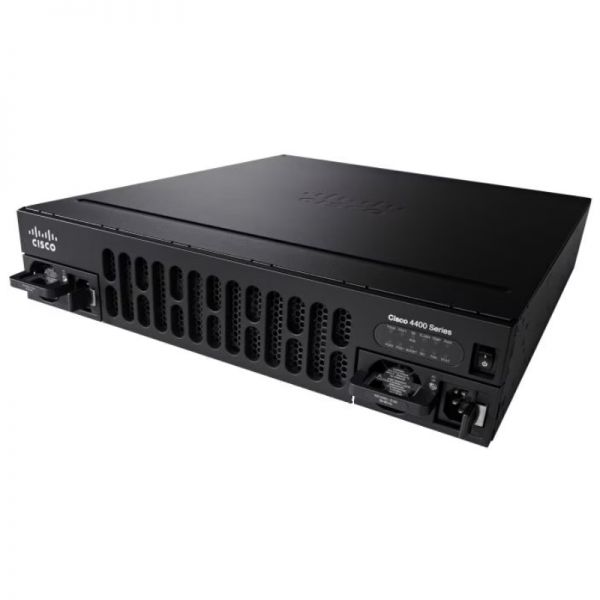

ISR4431/K9++

Model: Cisco ISR4431/K9++
In Stock
Login To See Price
Categories: ,

Cisco ISR4431/K9++ Product Highlights

  • ● High performance routing
  • ● Integrated security features
  • ● Fast deployment
  • ● Advanced network management
  • ● Scalable architecture

Product Features Comparison

Model Cisco ISR4431/K9++ Cisco ISR4321 Cisco ISR4351 Juniper SRX320 Fortinet FG-60F Huawei AR2240 HP MSR954
Performance 3 Gbps 1 Gbps 5 Gbps 620 Mbps 700 Mbps 2 Gbps 1 Gbps
Security Integrated Integrated Integrated Integrated Integrated Optional Optional
Interfaces 4 GE, 2 SFP 2 GE, 1 SFP 6 GE, 4 SFP 4 GE 4 GE 4 GE, 2 SFP 4 GE
WAN ports 2 2 4 2 2 2 2
Network Management Advanced Basic Advanced Basic Basic Advanced Basic
Scalability Highly scalable Moderate Highly scalable Limited Limited Moderate Limited
Power Redundant Single Redundant Single Single Redundant Single

Cisco ISR4431/K9++ Product Application Scenarios

  • ● Medium-sized businesses
  • ● Branch office deployments
  • ● High-performance secure connections

Optional Add-ons

Model Description
ISR4431-Memory-4GB 4GB Memory for ISR 4431
ISR4431-NIM-2GE NIM Module with 2 GE ports
PWR-4431-AC AC Power Supply for ISR 4431

Description

ISR4431/K9++ Overview

The Cisco Cisco ISR4431/K9++ is a versatile Integrated Services Router designed for high-performance connectivity and security. Ideal for SMEs, it offers seamless networking, robust cybersecurity, and high flexibility in deployment scenarios.

ISR4431/K9++ Specification

Cisco ISR4431/K9++ Specifications
Model ISR4431/K9++
Product Type Router
Device Type Integrated Services Router
Connectivity Technology Wired, Wireless (Optional)
Max Aggregate Throughput 500 Mbps
Rack Units (RU) 1 RU
Processor Multi-core Processor
Memory 8 GB DRAM (Upgradeable)
Flash Memory 8 GB
Power Supply AC (Internal), Redundant Power Supply Available
LAN Ports 4 x Gigabit Ethernet
WAN Ports 2 x Gigabit Ethernet
Integrated Zones 2 Security Zones
Expansion Slots 2 NIM Slots, 1 SM Slot, 2 ISC Slots
USB Ports 2 x USB 2.0
Console Port RJ-45
Management Protocols SNMP, RMON, Telnet, HTTP, HTTPS
Supported Protocols BGP, OSPF, EIGRP, RIP, HSRP, VRRP, GLBP
Operating Temperature 0 to 40??C (32 to 104??F)
Storage Temperature -20 to 65??C (-4 to 149??F)
Dimensions (WxDxH) 44.5 x 44.5 x 4.4 cm
