ISR4431-V/K9
In Stock
Quick Specs

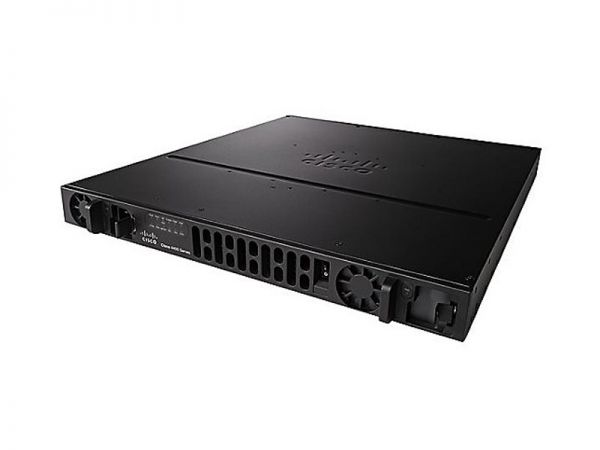

Figure 1 shows the appearance of Cisco ISR4431/K9 for reference. ISR4431-V/K9 is similar with it.
Table 1 shows the Quick Specs.
| Product Code | ISR4431-V/K9 |
| Aggregate Throughput | 500 Mbps to 1 Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module (SM-X) slot | 0 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
| DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 8 GB (default) / 32 GB (maximum) |
| Power-supply options | Internal: AC, DC, and PoE |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 43.9 x 438.15 x 507.2 mm |
| Package Weight | 20.88 Kg |
Product Details
Figure 2 shows the front panel of Cisco ISR4431/K9 for reference. ISR4431-V/K9 is similar with it..
Note:
| ① | Power supply unit | ③ | Router power On/Off switch |
| ② | LEDs | ④ | Optional power supply unit |
·LEDs include 12 indicators.
Table 2 shows the LED descriptions.
| LEDs | Represents | Color | Description |
| PSU | Power Supply Unit (P0 and P1) Status | Green | PSU is on and is providing power. |
| Amber | PSU is on but with errors or in a failure condition. | ||
| Off | Power supply is turned off. | ||
| GE POE | Internal PoE Daughter Card Status | Green | PSU is installed and providing power |
| Amber | PSU is installed but in a failure condition. | ||
| Off | PSU is off. | ||
| FLASH | System Flash Status | Blinking Green | Compact flash/eUSB flash is present and currently being accessed. |
| TEMP | Temperature Status | Solid green | All temperature sensors in the system are within acceptable range. |
| Amber | One or more temperature sensors in the system are outside the acceptable range. | ||
| Off | Temperature is not being monitored. | ||
| PWR | System Power | Green | System power is on and functioning correctly. |
| Green blinking | System power is in the process of shutting down. | ||
| Amber | System power is up, but low level initialization failed. | ||
| Amber blinking | System power is up, but the system failed to come out of reset. | ||
| Off | System power is off. | ||
| POE BOOST | Power Over Ethernet Boost Mode | Green | Two PoE power supplies are installed and operating in boost mode. |
| Off | This can mean one of the following:
·No PoE PSU installed. ·One PoE PSU installed. ·Two PoE PSUs installed and operating in redundant mode. |
||
| ISC | ISC Slot Status | Green | PVDM4 is present and enabled. |
| Amber | Initialized with error. | ||
| Off | Not present. | ||
| FAN | Fan Status | Green | All fans are operating. |
| Amber | One fan has stopped working. | ||
| Blinking Amber | Two or more fans have stopped working, or the fan tray has been removed. | ||
| Off | Fans are not being monitored. | ||
| STAT | System Status | Solid green | System operating normally. |
| Blinking amber | BIOS/Rommon is booting. | ||
| Amber | BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software. | ||
| Off | System is not out of reset or BIOS image is not loadable. |
Figure 3 shows the back panel of Cisco ISR4431/K9 for reference. ISR4431-V/K9 is similar with it..
Note:
| ① | GE management port | ⑤ | Console port |
| ② | Auxiliary port | ⑥ | GE Ports |
| ③ | USB Type A port | ⑦ | NIM Slots |
| ④ | USB Type B mini port | ||
·The NIMs support 2 single-wide or 1 double-wide.
·The GE Ports include 4 RJ45 ports and 4 SFP ports.
The Modules, Cards, Licenses & Accessories
Table 3 shows some recommended modules, cards, licenses and several cables.
|
Items |
Models |
Descriptions |
|
Console and Auxillary Cables |
CAB-AUX-RJ45 |
Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
|
CAB-ETH-S-RJ45 |
Cisco Router Cable CAB-ETH-S-RJ45 |
|
|
CAB-CONSOLE-RJ45 |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
|
CAB-CONSOLE-USB |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
|
Licenses |
L-SL-44-APP-K9= |
Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU |
|
Network Interface Modules |
NIM-1MFT-T1/E1 |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
NIM-2CE1T1-PRI |
Cisco Multiflex Trunk Voice and WAN network interface module |
|
|
NIM-4E/M |
Analog voice network interface card (ear and mouth) |
|
|
NIM-2FXS |
Cisco Analog voice network interface card NIM-2FXS |
|
|
NIM-2FXS/4FXO |
Cisco Analog voice network interface card NIM-2FXS/4FXO |
|
|
NIM-8MFT-T1/E1 |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
|
SFPs for On-Board GE Ports |
GLC-SX-MMD |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
|
GLC-ZX-SMD |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Items
Table 4 shows the comparison chart.
|
Models |
ISR4431-V/K9 |
ISR4431/K9 |
|
Description |
Cisco ISR 4431 (4GE,3NIM,8G FLASH,4G DRAM,VOIP) |
Cisco ISR 4431 (4GE,3NIM,8G FLASH,4G DRAM,IP Base) |
|
Aggregate Throughput |
500 Mbps to 1 Gbps |
500 Mbps to 1 Gbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
4 |
4 |
|
RJ-45-based ports |
4 |
4 |
|
SFP-based ports |
4 |
4 |
|
Enhanced service-module slots |
0 |
0 |
|
NIM slots |
3 |
3 |
|
Onboard ISC slot |
1 |
1 |
|
Rack height |
1 |
1 |
Description
ISR4431-V/K9 Overview
ISR4431-V/K9 integrated router combines high-performance, scalability, VOIP and smart router is made to run multiple services. This is the only router in industry separates control data and services planes, so the benefits are numerous. With pay-as-you-grow performance, you can increase forwarding capacity when needed, you only pay for the performance you need. The ISR4431-V/K9 runs multi-core, multi-threaded advanced Voice IOS-XE operating system to enable both WAN link security and VOIP services. Full featured WAN optimization with that run native on the motherboard without affecting performance, management and other capabilities. According to the scalability, ISR 4431 designed as a layer 7 router basically, the advanced network services enable the branch to utilize the WAN intelligently is really what ISR 4400 series all about. The Cisco ISR 4431 is the ultimate application delivery platform to mid-size or even large branch offices. This is literally routing redefined.
ISR4431-V/K9 Specification
Cisco ISR4431-V/K9 Specification |
|
| Description | Cisco ISR 4431 (4GE, 3NIM, 8G FLASH, 4G DRAM, VOIP) |
| Aggregate Throughput | 500Mbps to 1Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
(Combined control/services/data planes) |
NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | Internal: AC, DC, and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 65 |
| Maximum power with AC power supply (watts) | 250 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 W with optional redundancy |
