NIM-1MFT-T1/E1

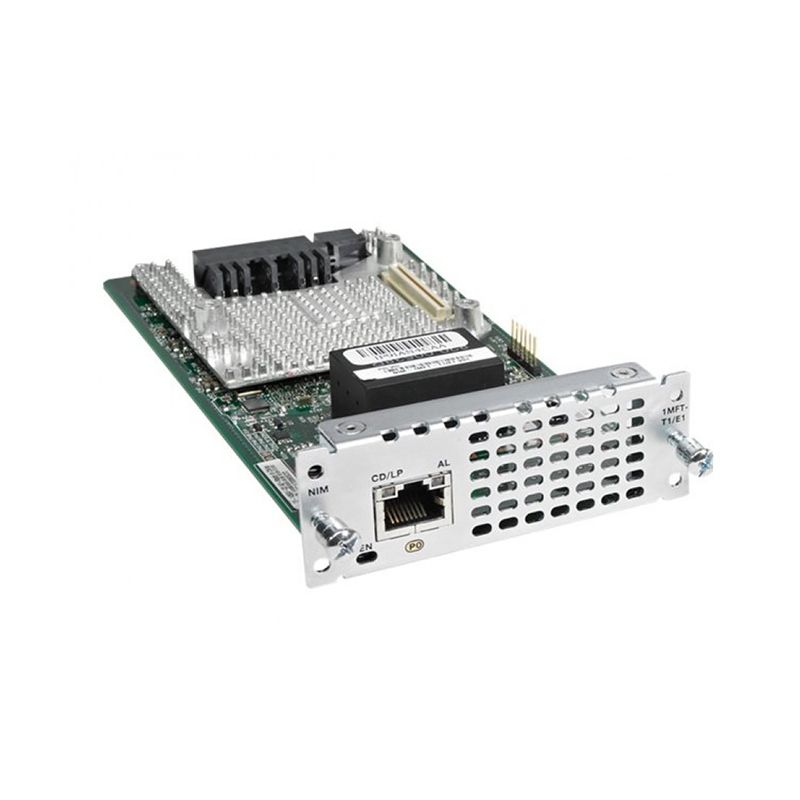

Model: Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module NIM-1MFT-T1/E1
In Stock

Quick Specs

Table 1 shows the Quick Specs.

Model

NIM-1MFT-T1/E1

Serial data (channel-group*)

2 per port

E1 unframed G.703

Not supported

Voice channel associated signaling (CAS) (ds0-group)

24 per port (T1)

31 per port (E1)

1 per timeslot

PRI (pri-group*)

1 per port

Drop and insert

(tdm-group)

24 per port (T1)

31 per port (E1)

1 per timeslot

Dimensions (H x W x D) 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)

* channel-group refers to bonding of one or more time slots into a single High-Level Data Link Control (HDLC)-framed serial connection for IP data traffic connectivity. This connection is used for HDLC, Frame Relay, and Multilink PPP (MLPPP) serial WAN connections.

ds0-group refers to bonding of one or more time slots into a single TDM voice connection using CAS such as ear and mouth (E&M), foreign exchange station (FXS), or foreign exchange office (FXO). This connection is used for TDM PBX or PSTN connections and typically is deployed only on T1.

* pri-group refers to bonding of two or more time slots into a single TDM connection using ISDN signaling. This connection is typically used for TDM PBX or PSTN voice connections on T1 and E1, and also for data WAN connections on E1. Each call on the PRI is individually indicated as being a voice or data call with the ISDN bearer capability delivered with the call. Signaling is done on the D-channel, which is always channel 24 on a T1 and channel 31 on an E1.

tdm-group refers to cross-connecting one or more time slots from one TDM interface to another. This connection is used to groom channels from different access points onto a combined T1 or E1 uplink. Because the router merely cross-connects and does not interpret or route the traffic from the ingress interface to the egress interface, the traffic type (voice and data) is transparent to the router.

Description

NIM-1MFT-T1/E1 Overview

The Cisco Fourth-Generation 1-, 2-, 4-, and 8-Port T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) support data and voice applications on the Cisco 4000 Integrated Services Routers. These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide superior flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface.

NIM-1MFT-T1/E1 Specification

NIM-1MFT-T1/E1 Specification

Capacity

Serial data (channel-group)

2 per port

E1 unframed G.703

Not supported

Voice channel associated signaling (CAS) (ds0-group)

24 per port (T1)

31 per port (E1)

1 per timeslot

PRI (pri-group)

1 per port

Drop and insert

(tdm-group)

24 per port (T1)

31 per port (E1)

1 per timeslot

T1 Network Interface

Transmit bit rate

1.544 Mbps ±50 bps/32 ppm

Receive bit rate

1.544 Mbps ±50 bps/32 ppm

Line code

Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)

AMI ones density

Enforced for n x 56-kbps channels

Framing format

D4 (Super Frame [SF]) and Extended Super Frame (ESF)

Output level (line build-out [LBO])

0, -7.5 or -15 dB

Input level

+1 dB0 down to -24 dB0

Data-terminal-equipment (DTE) interface (WIC mode)

Fractional service

DTE interface (VIC mode)

G.704 or structured

Data-communications-equipment (DCE) interface

G.704 or structured

E1 Network Interface

Transmit bit rate

2.048 Mbps ±100 bps/50 ppm

Receive bit rate

2.048 Mbps ±100 bps/50 ppm

Data rate

1.984 Mbps (framed mode) per E1 port

Clocking

Internal and loop (recovered from network)

E1 national bits

Fixed (nonconfigurable)

Encoding

High-density bipolar three (HDB3)

DTE interface (WIC mode)

Fractional service

DTE interface (VIC mode)

G.704 or structured

DCE interface

G.704 or structured

Module Specifications

Dimensions (H x W x D)

1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)

Environmental

●  Operating temperature: 0 to 50°C (32 to 122°F)

●  Storage temperature: -20 to +65°C (-4 to 148°F)

●  Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating

T1 Compliance (partial list)

●  TIA-968-A

●  CS-03

●  Jate

●  ANSI T1.403

E1 Compliance (partial list)

●  TBR4, TBR12, and TBR13

●  ITU-T G.703, G.704, G.823, and I.431

●  S016 (Australia)

Weight

0.40 lb (181g)
