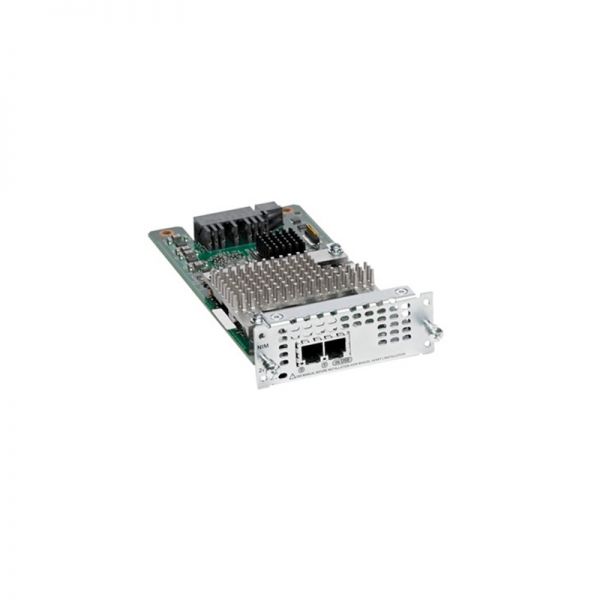

NIM-2BRI-NT/TE=

Model: NIM-2BRI-NT/TE= - Cisco ISR 4000 Router Modules & Cards
In Stock
Login To See Price
Categories: ,

Quick Spec

Table 1 shows the quick spec.

SKU NIM-2BRI-NT/TE=
Number of Ports 2
ISR G2 comparison VIC2-2BRI-NT/TE
Cisco IOS Release XE3.14.3, XE3.15.1, XE3.16 and above
Weight 0.42 lb (191 g)

The Supported Devices

Table 2 shows the supported routers.

SKU Description
ISR4451-X/K9 1-2G system throughtput, 4 WAN/LAN ports, 4 SFP ports, 10 Core CPU, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs
ISR4451-X-AX/K9 1Gbps-2Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs
ISR4451-X-SEC/K9 Cisco ISR 4451 Sec bundle w/SEC license
ISR4451-X-VSEC/K9 Cisco ISR 4451 VSEC Bundle, PVDM4-64 w/ UC, SEC Lic, CUBE- 25
ISR4451-X-V/K9 Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic.CUBE25
ISR4451-X-AXV/K9 Cisco ISR 4451 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic. CUBE-25

Compare to Similar Item

Table 3 shows the comparison.

Part Number Number of Ports ISR G2 comparison Cisco IOS Release
NIM-2FXO 2 VIC2-2FXO XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above
NIM-4FXO 4 VIC2-4FXO XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above
NIM-2FXS 2 VIC3-2FXS/DID XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above
NIM-4FXS 4 VIC3-4FXS/DID XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above
NIM-2FXS/4FXO 6 VIC2-4FXO and VIC3-2FXS/DID XE3.14.3, XE3.15.1, XE3.16 and above
NIM-2FXSP 2 VIC3-2FXS/DID XE16.5 and above
NIM-4FXSP 4 VIC3-4FXS/DID XE16.5 and above
NIM-2FXS/4FXOP 6 VIC2-4FXO and VIC3-2FXS/DID XE16.5 and above
NIM-4E/M 4 VIC3-2E/M XE3.14.3, XE3.15.1, XE3.16 and above
NIM-2BRI-NT/TE= 2 VIC2-2BRI-NT/TE XE3.14.3, XE3.15.1, XE3.16 and above
NIM-4BRI-NT/TE 4 VIC2-2BRI-NT/TE XE3.14.3, XE3.15.1, XE3.16 and above

Description

NIM-2BRI-NT/TE= Overview

NIM-2BRI-NT/TE= is a 2-port BRI Network Interface Module. The Cisco® 4000 Series Integrated Services Routers (ISRs) host the Cisco network interface modules (NIMs), which have evolved from the enhanced high-speed WAN interface card (EHWIC), increasing port density and module capability. Up to three integrated NIM slots on the 4000 Series allow for flexible configurations. The NIMs support online insertion and removal (OIR), reducing the downtime required for new or replacement modules.

The available modules include 2-port and 4-port foreign exchange station (FXS), direct inward dial (DID), foreign exchange office (FXO), a combination of 2-port FXS and 4-port FXO, 4-port ear and mouth (E/M), and 2-port and 4-port basic rate interface (BRI). The BRI cards support only voice features. The NIMs have a dedicated digital signal processor (DSP) that will be used for time-division multiplexing (TDM) analog voice services.

NIM-2BRI-NT/TE= Specification

NIM-2BRI-NT/TE= Specification
Number of Ports 2
ISR G2 comparison VIC2-2BRI-NT/TE
Cisco IOS Release XE3.14.3, XE3.15.1, XE3.16 and above
Weight 0.42 lb (191 g)
