NIM-4FXS
In Stock
Quick Spec
Table 1 shows the quick spec.
| SKU | NIM-4FXS |
| Number of Ports | 4 |
| ISR G2 comparison | VIC3-4FXS/DID |
| Cisco IOS Release | XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above |
| Weight | 0.44 lb (200 g) |
The Supported Devices
Table 2 shows the supported routers.
| SKU | Description |
| ISR4451-X/K9 | 1-2G system throughtput, 4 WAN/LAN ports, 4 SFP ports, 10 Core CPU, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs |
| ISR4451-X-AX/K9 | 1Gbps-2Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs |
| ISR4451-X-SEC/K9 | Cisco ISR 4451 Sec bundle w/SEC license |
| ISR4451-X-VSEC/K9 | Cisco ISR 4451 VSEC Bundle, PVDM4-64 w/ UC,SEC Lic,CUBE- 25 |
| ISR4451-X-V/K9 | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic.CUBE25 |
| ISR4451-X-AXV/K9 | Cisco ISR 4451 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25 |
Compare to Similar Item
Table 3 shows the comparison.
| Part Number | Number of Ports | ISR G2 comparison | Cisco IOS Release | Weight |
| NIM-2FXO | 2 | VIC2-2FXO | XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above | 0.42 lb (191 g) |
| NIM-4FXO | 4 | VIC2-4FXO | XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above | 0.44 lb (200 g) |
| NIM-2FXS | 2 | VIC3-2FXS/DID | XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above | 0.42 lb (191 g) |
| NIM-4FXS | 4 | VIC3-4FXS/DID | XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above | 0.44 lb (200 g) |
| NIM-2FXS/4FXO | 6 | VIC2-4FXO and VIC3-2FXS/DID | XE3.14.3, XE3.15.1, XE3.16 and above | 0.52 lb (236 g) |
| NIM-2FXSP | 2 | VIC3-2FXS/DID | XE16.5 and above | 0.42 lb (191 g) |
| NIM-4FXSP | 4 | VIC3-4FXS/DID | XE16.5 and above | 0.44 lb (200 g) |
| NIM-2FXS/4FXOP | 6 | VIC2-4FXO and VIC3-2FXS/DID | XE16.5 and above | 0.52 lb (236 g) |
| NIM-4E/M | 4 | VIC3-2E/M | XE3.14.3, XE3.15.1, XE3.16 and above | 0.44 lb (200 g) |
| NIM-2BRI-NT/TE | 2 | VIC2-2BRI-NT/TE | XE3.14.3, XE3.15.1, XE3.16 and above | 0.42 lb (191 g) |
| NIM-4BRI-NT/TE | 4 | VIC2-2BRI-NT/TE | XE3.14.3, XE3.15.1, XE3.16 and above | 0.44 lb (200 g) |
Description
NIM-4FXS Overview

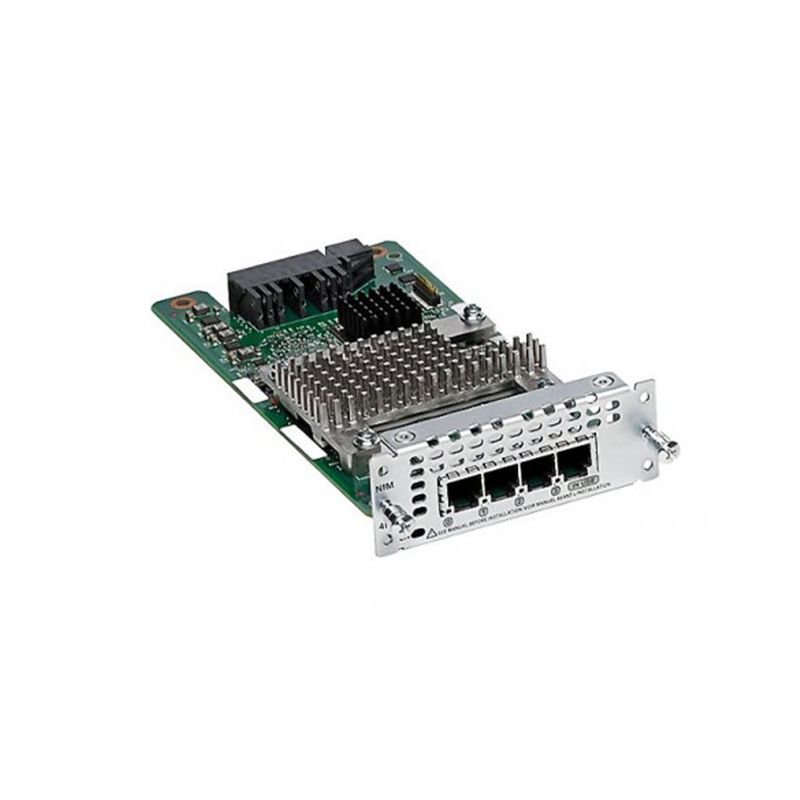

NIM-4FXS is a Cisco 4-Port Network Interface Module – FXS. FXS-E and DID, for ISR4451-X. The Cisco® 4000 Series Integrated Services Routers (ISRs) host the Cisco network interface modules (NIMs), which have evolved from the enhanced high-speed WAN interface card (EHWIC), increasing port density and module capability. Up to three integrated NIM slots on the 4000 Series allow for flexible configurations. The NIMs support online insertion and removal (OIR), reducing the downtime required for new or replacement modules.
The available modules include 2-port and 4-port foreign exchange station (FXS), direct inward dial (DID), foreign exchange office (FXO), a combination of 2-port FXS and 4-port FXO, 4-port ear and mouth (E/M), and 2-port and 4-port basic rate interface (BRI). The BRI cards support only voice features. The NIMs have a dedicated digital signal processor (DSP) that will be used for time-division multiplexing (TDM) analog voice services.
NIM-4FXS Specification
NIM-4FXS Specification |
|
| Number of Ports | 4 |
| ISR G2 comparison | VIC3-4FXS/DID |
| Cisco IOS Release | XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above |
| Weight | 0.44 lb (200 g) |
| Telnet or console | Remote and local configuration, monitoring, and troubleshooting from Cisco IOS XE Software command-line interface. |
| Simple Network Management Protocol
(SNMP) |
● Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user
● Standard MIB (MIB II) ● Cisco Integrated DSU/CSU MIB ● RFC 1406 T1 MIB, including Alarm Detection and Reporting |
| SNMP traps | Generated in response to alarms |
| Standard | TIA-968-B (USA)
CS-03 (Canada) AS/CA S003 (Australia) PTC220 (New Zealand) |
| Emission | 47 CFR Part 15
CISPR22: Edition 6.0: 2008 CNS13438: 2006 EN 300 386 V1.6.1 EN 55022:2010 EN61000-3-2: 2006 [Inc amd 1 '&' 2] EN61000-3-3: 2008 ICES-003 Issue 5: 2012 KN 22: 2009 TCVN 7189: 2009 VCCI: V-3/2013.04 |
| Immunity | CISPR24: 2010
EN 300 386 V1.6.1 EN55024: 2010 KN24: 2011 TCVN 7317: 2003 |
