QSFP-100G-SM-SR=

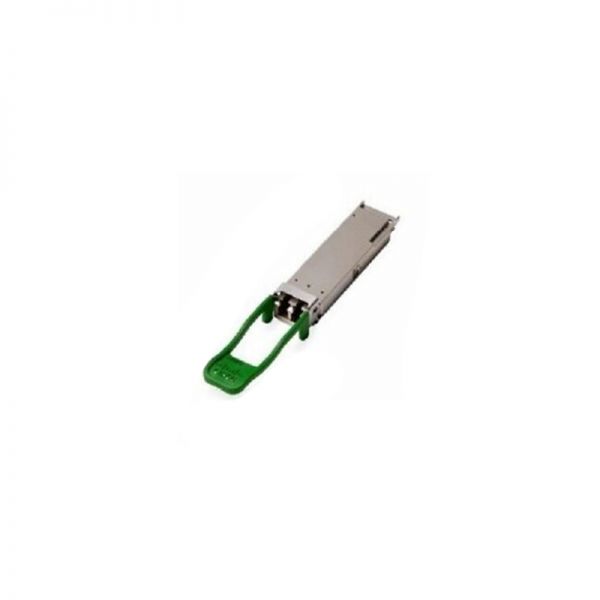

Model: QSFP-100G-SM-SR= - Cisco 100 Gigabit Optical Modules
In Stock

Quick Specs

Table 1 shows the Quick Specs.

Product Code QSFP-100G-SM-SR=
Description Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
Dimensions 13.5 x 18.4 x 72.4 mm
Nominal Wavelength (nm) 1271, 1291, 1311, 1331
Cable Type SMF
Core Size (Microns) G.652
Modal Bandwidth (MHz*km) \
Cable Distance 2km
Power Consumption (W) 3.5
Pull Tab Color Green

Product Details

QSFP-100G Optical modulesprovide these highlights:

Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port

Interoperable with other IEEE-compliant 100GBASE interfaces where applicable

Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability

High-speed electrical interface compliant to IEEE 802.3bm

Compare to Similar Items

Table 2shows the comparison.

Product Code QSFP-100G-CWDM4-S= QSFP-100G-ER4L-S= QSFP-100G-LR4-S= QSFP-100G-PSM4-S= QSFP-100G-SM-SR= QSFP-100G-SR4-S= QSFP-40/100-SRBD=
Description Cisco 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF Cisco 100GBASE QSFP Transceiver, 40KM reach over SMF, Duplex LC 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C 100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF 100G and 40GBASE SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF
Dimensions 13.5 x 18.4 x 72.4 mm 13.5 x 18.4 x 72.4 mm 13.5 x 18.4 x 72.4 mm 13.5 x 18.4 x 72.4 mm 13.5 x 18.4 x 72.4 mm 13.5 x 18.4 x 72.4 mm 13.5 x 18.4 x 72.4 mm
Nominal Wavelength (nm) 1271, 1291, 1311, 1331 1295, 1300, 1304, 1309 1295, 1300, 1304, 1309 1310 1271, 1291, 1311, 1331 850 855, 908
Cable Type SMF SMF SMF SMF SMF MMF MMF
Core Size (Microns) G.652 G.652 G.652 G.652 G.652 50.0

50.0

50.0

50.0

Modal Bandwidth (MHz*km) \ \ \ \ \ 2000 (OM3)

4700 (OM4)

2000 (OM3)

4700 (OM4)

Cable Distance 2km 40km (with host FEC)

30km (without host FEC)

10km 500m 2km 70m

100m

70m

100m

Power Consumption (W) 3.5 4.5 4.0 3.5 3.5 3.5 3.5
Pull Tab Color Green Rad Blue Orange Green Beige Gray

Description

QSFP-100G-SM-SR= Overview

The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our new generation of 100G transceiver modules solution based on a QSFP form factor.

QSFP-100G-SM-SR= Specification

QSFP-100G-SM-SR= Specification

Description Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
Dimensions 13.5 x 18.4 x 72.4 mm

 QSFP Port cabling specifications

Nominal Wavelength (nm) 1271, 1291, 1311, 1331
Cable Type SMF
Core Size (Microns) G.652
Modal Bandwidth (MHz*km)*1 \
Cable Distance 2km
Power Consumption (W) 3.5
Pull Tab Color Green
*1 Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm

Optical characteristics

Transmit Power (dBm) per lane*2 Max:+2.5

Min:-6.9

Receive Power (dBm) per lane*2*3 Max:+2.5

Min: -11.1

Receive Power (dBm) per lane Four lanes: 1271, 1291, 1311, 1331
*2 Transmitter and receiver power is average optical power, unless specified

*3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation

Environmental Conditions and Power Requirements

Commercial temperature +10 to 60°C (50 to 140°F)
Storage temperature -40 to 85°C (-40 to 185°F)

Regulatory and Standards compliance

Standards •SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013

•SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014

•802.3™-2012 IEEE Standard for Ethernet

•IEEE 802.3ba Amendment of IEEE Std 802.3-2012

•IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)

•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable

•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies

•GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment

•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

•RoHS 6

Safety •Cable jacket of QSFP copper modules is UL E116441 Compliant

•QSFP copper cables are ELV compliant
