SFP-10G-ZR-S=

Name: SFP-10G-ZR-S=
SKU: 3183
Price: 80000.00 NGN
Availability: InStock

Model: SFP-10G-ZR-S= - Cisco SFP GLC Module

In Stock

Categories: Cisco, Cisco Modules & Cards

Quick Spec

Table 1 shows the quick spec.

Brand	Cisco
Product Model	SFP-10G-ZR-S=
Product Type	SFP+ Transceiver
Data Rate	10 Gbps
Connector Type	LC duplex
Cable Type	Single-mode fiber
Wavelength	1550 nm
Max Distance	80 km
Compatibility	Cisco networking equipment

Description

SFP-10G-ZR-S= Overview

10GBASE-ZR SFP Module, Enterprise-Class

The Cisco SFP-10G-ZR-S= is a 10 Gigabit Ethernet transceiver that is designed for use in Cisco networking equipment. It provides reliable and high-speed connectivity for data centers, campus networks, and service provider networks.

SFP-10G-ZR-S= Specification

SFP-10G-ZR-S= Specification
Brand	Cisco
Product Model	SFP-10G-ZR-S=
Product Type	SFP+ Transceiver
Data Rate	10 Gbps
Connector Type	LC duplex
Cable Type	Single-mode fiber
Wavelength	1550 nm
Max Distance	80 km
Compatibility	Cisco networking equipment

Reviews

There are no reviews yet.

Be the first to review “SFP-10G-ZR-S=”

Related products

Add to wishlist Compare

EHWIC-4G-LTE-G

Quick Specs

Figure 1 shows the appearance of EHWIC-4G-LTE-G. Table 1 shows the Quick Specs.

Product Name	EHWIC-4G-LTE-G
External Interfaces	• Mini-USB interface for use with diagnostics and monitoring tools • Two TNC connectors with main and MIMO RF port for antenna connection • Separate active GPS with SMA (support with later Cisco IOS Software release) • Support for main and MIMO antenna connector
Form Factor	Single-wide EHWIC for Cisco ISR G2 platforms
Physical Dimensions (H x W x D)	0.75 x 3.08 x 4.9 in. (1.9 x 7.8 x 12.4 cm)
Weight	5.2 oz (147 grams)
Subscriber Identity Module (SIM) Card	4G LTE SIM card socket (USIM or mini-SIM)
Power	10.6 W peak (5.1 W typical)
Supported Platforms	Modular Cisco 1900, 2900, and 3900 Series ISR G2
Software Compatibility	Main Features Include • Autoswitch failover between primary and backup links • Multichannel-interface-processor (MIP) profile configuration • 3G Simple Network Management Protocol Version 2 (SNMPv2) MIBs and traps • Remotely initiated data callback using voice • Remotely initiated data callback using SMS • Remote firmware upgrade over 4G LTE • Virtual diagnostic monitoring • SIM lock and unlock capability • Mobile routing: Enterprise Dynamic Mobile Network Routing (DMNR) based on Cisco Network Mobility (NEMO) • Receive diversity: For all supported bands , multiple-input and multiple-output (MIMO) on LTE • Density: Maximum EHWIC slots
SMS/GPS/Multiple Profile*	• GPS antenna: SMA connector • Send and receive SMS (maximum 160 characters) • Separate standalone active GPS with SMA (available with 15.3(3)M1 in November, 2013) • Configure multiple profile (available with 15.3(3)M1 in November, 2013)
MIBs*	• 3G MIB • Entity MIB • IF MIB • 3G WWAN MIB persistence • Enhanced 3G MIB for 4G MIB extension (available with 15.3(3)M1 in November, 2013)
Network Management and Diagnostics	• In-band and out-of-band management using Telnet (Cisco IOS Software command-line interface [CLI]) and SNMP, including MIB II and other extensions • Industry-standard 4G LTE diagnostics and monitoring tools (QUALCOMM CDMA Air Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM]
Modem Information	• • EHWIC-4G-LTE-G: Sierra Wireless MC7710
Diagnostic	RSVD mini-USB port
Update	OTA-DM
Programming Interfaces	Cisco IOS Software CLI
Wireless Technologies Supported	EHWIC-4G-LTE-G • LTE 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), 2600 MHz (band 7) Backward compatibility: • UMTS and HSPA+ (DC-HSPA+): 900 and 2100 MHz • Tri-band EDGE, GPRS, andGSM
LED indicators	EHWIC-4G-LTE-A, EHWIC-4G-LTE-BE, EHWIC-4G-LTE-JP, EHWIC-4G-LTE-G • WWAN LED (connection status indication) • RSSI • HSPA+ • GPS • LTE

Add to wishlist Compare

ASR1000-ESP100=

Add to wishlist Compare

NIM-ES2-4=

Quick Specs

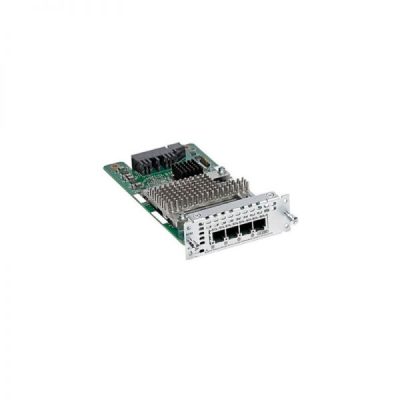

Figure 1 shows the appearance of NIM-ES2-4=. Table 1 shows the Quick Specs.

Product Code	NIM-ES2-4=
Form factor	Single-wide NIM form factor
Ports	4-port Gigabit Ethernet
Dimensions (H x W x D)	0.8 x 3.1 x 4.8 in. (2.1 x 7.9 x 12.2 cm)
Weight	79g (0.17 lb)

Platform Support

Table 2 shows recommended platforms that support the 4-port Cisco Gigabit Ethernet LAN Switch NIMs.

Platform	Platform Maximum Support
Cisco 4221	2
Cisco 4321	2
Cisco 4331	2
Cisco 4351	3
Cisco 4431	3
Cisco 4451	3

Compare to Similar Items

Table 3 shows the similar items.

Model	NIM-ES2-4=	NIM-ES2-8
Form factor	Single-wide NIM form factor	Single-wide NIM form factor
Ports	4-port Gigabit Ethernet	8-port Gigabit Ethernet
Dimensions (H x W x D)	0.8 x 3.1 x 4.8 in. (2.1 x 7.9 x 12.2 cm)	0.8 x 6.2 x 4.8 in. (2.1 x 18.8 x 12.2 cm)
Weight	79g (0.17 lb)	108g (0.24 lb)

Add to wishlist Compare

NIM-2CE1T1-PRI

Quick Spec

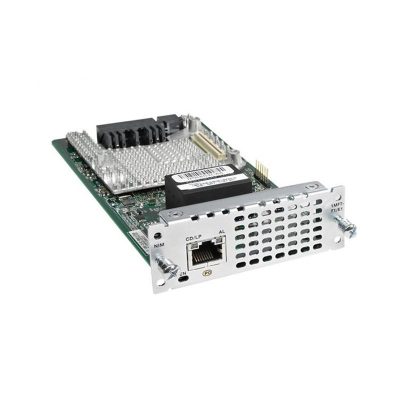

The figure shows the appearance of NIM-2CE1T1-PRI. Table 1 shows the quick spec.
