SM-ES3G-16-P

Model: SM-ES3G-16-P Router Service Module
In Stock
Login To See Price
Categories: ,

Quick Specs

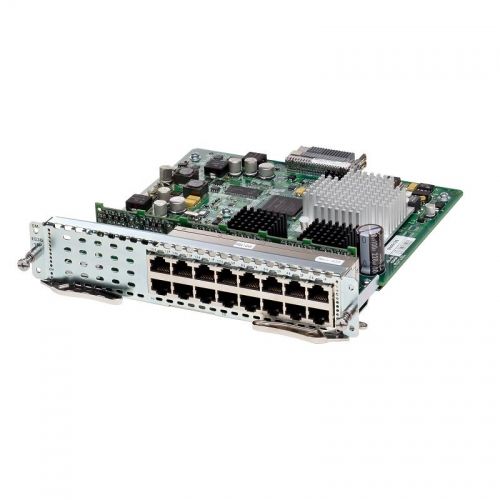

Figure 1 shows the appearance of SM-ES3G-16-P.

Table 1 shows the Quick Specs.

Model SM-ES3G-16-P
Gigabit Ethernet Ports 16
Layer 2/3 Switching X
PoE X
Service Module Width Single
Default Software Universal Image: IP Base
Minimum Cisco EtherSwitch and Cisco IOS Software Release 12.2(52)EX
Minimum Router Cisco IOS Software Release 15(0).1M
Dimensions: Wide x Deep x High (cm.) 20.6 x 20.7 x 4.0
Weight (kg.) 2.2
Operational Temperature 0 to 40 °C
Nonoperational Temperature -40 to 70 °C
Operational Humidity 5 to 90%
Nonoperational Humidity 5 to 95%

Description

SM-ES3G-16-P Overview

SM-ES3G-16-P is 16 Gigabit Ethernet ports EtherSwitch Service Module for 2900-series, 3900-series router which has identical capacity to Catalyst 3560 series switch. SM-ES3G-16-P offers POE capacity that powers 20W per port; you can connect IP phones, wireless access points and IP-based video cameras from a single platform. The Cisco Enhanced EtherSwitch Service Modules offers cost-efficiency solution to meet branch office or small to midsize business offices needs with no requiring physical room.

SM-ES3G-16-P Specification

Model info

SM-ES3G-16-P

Product Type

Cisco Enhanced EtherSwitch Service Module

Port Density

16 * 10/100/1000 GE ports

Power over Ethernet (PoE)

up to 20W per port

Routing Protocol

RIP-1, RIP-2, HSRP, static IP routing, RIPng

Remote Management Protocol

SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Supported router

2911 / 2921 / 2951 / 3925 / 3945

Service Module Width

single slot

Power Redundancy

RPS 2300

IP base feature

• QoS
• ACLs
• Static Routing
• RIP v1,v2
• HSRP

IP service feature

• IP unicast and IP Multicast routing
• EIGRP
• OSPF
• BGP
• PIM
• IPv6 routing

• OSPFv3
• EIGRPv6
• IP SLA
• VRF-lite

Security Features

• Dynamic ARP Inspection (DAI)
• DHCP Snooping
• IP Source Guard
• Private VLANs
• Unicast Reverse Path Forwarding (RPF)
• IEEE 802.1x
• Multidomain Authentication
• MAC Authentication Bypass
• Advanced ACLs
• Administrative Traffic Protection
• Switched Port Analyzer (SPAN)

• Centralized Authentication
• MAC Address Authentication
• Port Security
• Console Security
• Bridge Protocol Data Unit (BPDU) Guard
• Spanning-Tree Root Guard (STRG)
• Dynamic VLAN Assignment
• IGMP Filtering

Software license

• L-ES3G-16-IPS: IP Services License Upgrade 16 Port GE ES3 Enhanced EtherSwitch eDelivery

• L-ES3: Upgrade Quantity license
