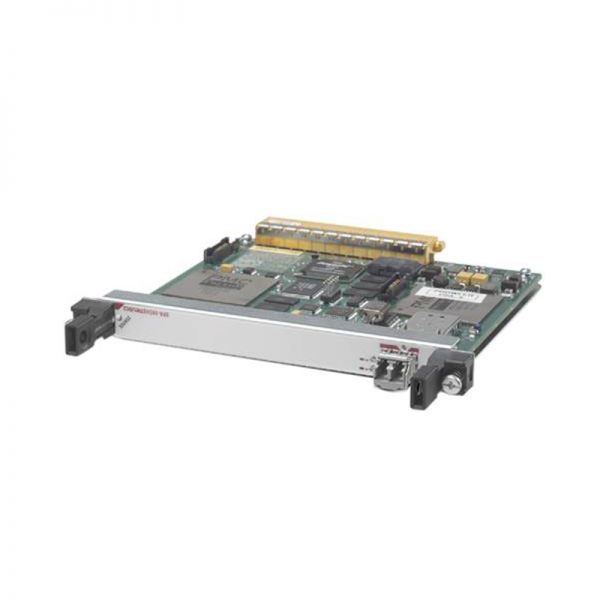

SPA-1CHSTM1/OC3V2=

Model: SPA-1CHSTM1/OC3V2= - Cisco Module & Card
In Stock
Login To See Price
Categories: ,

Quick Specs

Table 1 shows the Quick Specs.

Product Code SPA-1CHSTM1/OC3V2=
Product compatibility
  • ● Cisco 7600 Series Routers
  • ● Cisco ASR 1000 Series Routers
  • ● Cisco ASR 9000 Series Routers
Minimum software version
  • ● Cisco 7600 Series Routers: Cisco IOSSoftware Release 15.4(2)S and Cisco IOS XE Software Release 3.12.0.0S
  • ● Cisco ASR 1000 Series Routers with Cisco IOS XE Software Releases 3.12.0,3.11.2,and 3.10.3
  • ● Cisco ASR 9000 Series Routers with Cisco IOS XR Software Release 5.2.0
Protocols Serial encapsulations:

*High-Level Data Link Control (HDLC)
*Point-to-Point Protocol (PPP), RFC 1662
*Frame Relay, RFC 1490
Multilink support (bundle limit dependent on number of links per bundle; maximum of 12 links per bundle):

*Multilink PPP (MLPPP), RFC 1990
*Link fragmentation and interleaving (LFI) over Frame Relay (FRF.12) and MLPPP
Networking protocols:

*IPv4/IPv6
Cards, ports, and slots 1 port
Reliability and availability OIR

Field-replaceable SFP optics modules

Support for both 1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

Single SPA software reset
MIBs RFC 2558 MIB (SONET/SDH)

RFC 2495 MIB (T1/E1)

RFC 2496 MIB (T3/E3)
Network management Simple Network Management Protocol (SNMP)
Physical specifications Weight: 0.75 lb (0.34 kg)

Height: 0.8 in. (2.03 cm)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)

Description

SPA-1CHSTM1/OC3V2= Overview

The Cisco SPA-1CHSTM1/OC3V2=,1-Port STM-1/OC-3 SPA Version 2 enables customers to scale services by upgrading bandwidth from DS-0/E1 to T3/E3 connections – all without any additional interfaces in their routers.

SPA-1CHSTM1/OC3V2= Specification

SPA-1CHSTM1/OC3V2= Specification
Product compatibility
  • Cisco 7600 Series Routers
  • Cisco ASR 1000 Series Routers
  • Cisco ASR 9000 Series Routers
Minimum software version
  • Cisco 7600 Series Routers: Cisco IOS® Software Release 15.4(2)S and Cisco IOS XE Software Release 3.12.0.0S
  • Cisco ASR 1000 Series Routers with Cisco IOS XE Software Releases 3.12.0,3.11.2, and 3.10.3
  • Cisco ASR 9000 Series Routers with Cisco IOS XR Software Release 5.2.0
Protocols Serial encapsulations:

*High-Level Data Link Control (HDLC)
*Point-to-Point Protocol (PPP), RFC 1662
*Frame Relay, RFC 1490
Multilink support (bundle limit dependent on number of links per bundle; maximum of 12 links per bundle):

*Multilink PPP (MLPPP), RFC 1990
*Link fragmentation and interleaving (LFI) over Frame Relay (FRF.12) and MLPPP
Networking protocols:

*IPv4/IPv6
Cards, ports, and slots 1 port
Reliability and availability OIR

Field-replaceable SFP optics modules

Support for both 1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

Single SPA software reset
MIBs RFC 2558 MIB (SONET/SDH)

RFC 2495 MIB (T1/E1)

RFC 2496 MIB (T3/E3)
Network management Simple Network Management Protocol (SNMP)
Physical specifications Weight: 0.75 lb (0.34 kg)

Height: 0.8 in. (2.03 cm)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)
