UDM
In Stock

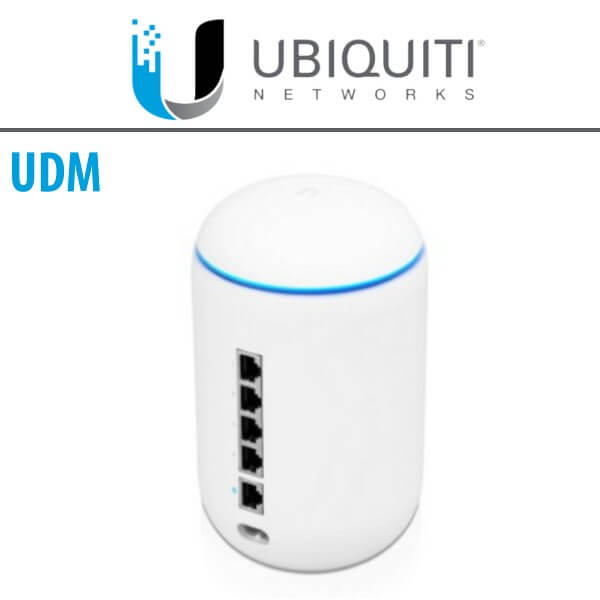

Ubiquiti / UBNT UniFi Dream Machine Dual-Band Router, 1 Gigabit Ethernet, Wireless AP,Wave 2 integrated AC controller
Description
UDM Overview
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | UDM |
| Dimensions | 110 x 184.2 mm ( 4.33 x 7.25″) |
| Networking Interfaces | (4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port |
| Power Method | AC Power Cord |
| Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC) |
| Antenna | (1) Dual-Band, Quad-Polarity Antenna |
Product Details
UDM provides these features:
- ● Dual-band Wave 2 access point (802.11ac, 4×4)
- ● Managed, 4-Port Gigabit switch
- ● Advanced security gateway with internet threat management and deep packet inspection
- ● Pre-installed UniFi Network application
- ● Powered by a fast, 1.7 GHz quad-core processor
- ● Allows you to easily scale your deployment by connecting additional UniFi devices
Compare to Similar Items
Table 2 shows the comparison of UDM.
| Module | UDM | UDM-Pro |
| Dimensions | 110 x 184.2 mm
( 4.33 x 7.25″) |
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24″) |
| IDS/IPS Throughput | 850 Mbps | 3.5 Gbps |
| Power Method | AC Power Cord | (1) Universal AC Input, 100-240VAC, 50/60 Hz |
| Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC) | Internal 50W/12V |
| System Memory | 2 GB DDR RAM | 4 GB DDR4 |
UDM Specification
UDM Specification |
|
| Dimensions | Ø 110 x 184.2 mm (Ø 4.33 x 7.25") |
| Networking Interfaces | (4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port |
| Buttons | Reset |
| IDS/IPS Throughput | 850 Mbps |
| Processor | Arm Cortex-A57 Quad-Core at 1.7 GHz |
| System Memory | 2 GB DDR RAM |
| On-Board Flash Storage | 16 GB |
| Maximum Power Consumption | 26W |
| Supported Voltage Range | 100 - 240VAC |
| Power Method | AC Power Cord |
| Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC) |
| Power Save | Supported |
| Beamforming | Supported |
| TX Power* 2.4 GHz 5 GHz |
23 dBm 26 dBm |
| Antenna | (1) Dual-Band, Quad-Polarity Antenna |
| Antenna Gain 2.4 GHz 5 GHz |
3 dBi 4.5 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per Radio |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
