UDM-Pro
In Stock

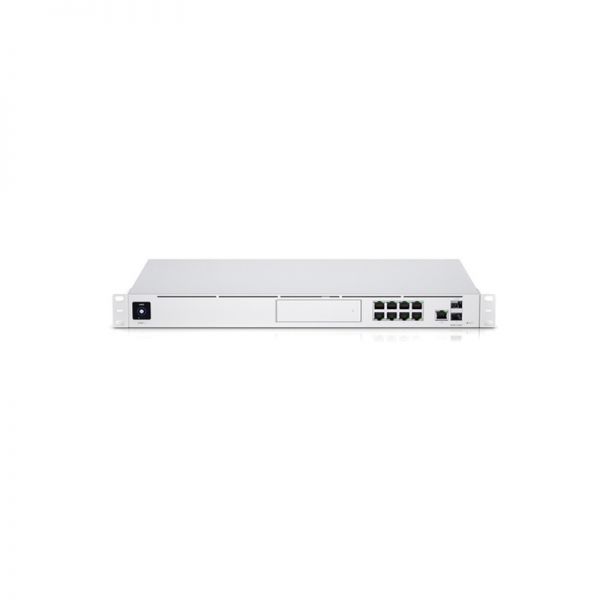

Ubiquiti / UBNT UniFi UDM-Pro Unifi Dream Machine-Pro 10 Gigabit Integrated Router, Security gateway
Description
UDM-Pro Overview
The UDM-Pro is an all-in-one networking console that runs every UniFi OS application, like Network and Protect.
Table 1 shows the Quick Specs.
| Product Code | UDM-Pro |
| Interfaces
|
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port |
| Management Interfaces | Ethernet In-Band
(1) Bluetooth BLE |
| Max. Power Consumption: | 33W |
| Voltage Range: | 100 to 240VAC |
| Power Method: | (1) Universal AC Input, 100-240VAC, 50/60 Hz |
| Width x Height x Depth:
|
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24″) |
UDM-Pro provides these features:
- ● Runs every UniFi OS application, including the pre-installed UniFi Network
- ● 8-port switch with 1GbE RJ45 and 10G SFP+ ports
- ● Integrated security gateway and UniFi Protect-ready network video recorder that supports compatible 3.5″ HDDs
- ● Enterprise-class internet threat management, deep packet inspection, and WiFi AI functionality
- ● Powered by a fast, 1.7 GHz quad-core processor
- ● 1U-sized, rack-mountable console
- ● Allows you to easily scale your deployment by connecting additional UniFi devices
UDM-Pro Specification
UDM-Pro Specification |
|
| Dimensions | |
| Width x Height x Depth:
|
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24") |
| Technical specifications | |
| Interfaces
|
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port |
| Management Interfaces | Ethernet In-Band
(1) Bluetooth BLE |
| Technical Information | |
| IDS/IPS Throughput: | 3.5 Gbps |
| Processor: | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory: | 4 GB DDR4 |
| On-Board Flash Storage: | 16 GB eMMC |
| Power | |
| Max. Power Consumption: | 33W |
| Voltage Range: | 100 to 240VAC |
| Power Method: | (1) Universal AC Input, 100-240VAC, 50/60 Hz |
| Redundant Power: | (1) RPS DC Input |
| Power Supply: | Internal 50W/12V |
| ESD/EMP Protection: | Air: ± 16 kV, Contact: ± 12 kV |
| Environment | |
| Operating Temperature: | -10° to 40° C (14° to 104° F) |
| Operating Humidity: | 5 to 95% Noncondensing |
