US-16-150W
In Stock

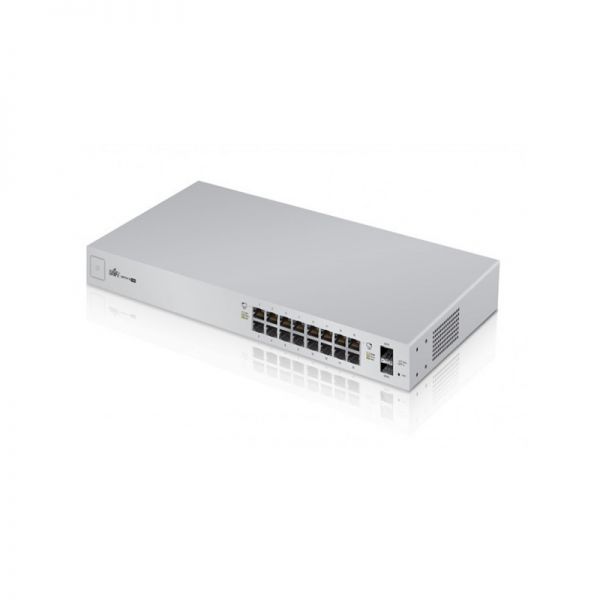

US-16-150W – Ubiquiti Unifi Switch 16 PoE 150W delivers robust performance over its 18 independent switching ports.
Description
The US-16-150W delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | US-16-150W |
| Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″) |
| Networking Interfaces | (16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Total Non-Blocking Throughput | 18 Gbps |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
Product Details
US-16-150W provides these features:
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Integration with UniFi Controller
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.
Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
Compare to Similar Items
Table 2 shows the comparison of US-16-150W.
| Model | US-16-150W | US-24-250W |
| Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″) | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″) |
| Networking Interfaces | (16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports | (24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports |
| Total Non-Blocking Throughput | 18 Gbps | 26 Gbps
|
| Switching Capacity | 36 Gbps | 52 Gbps |
| Forwarding Rate | 26.78 Mpps | 38.69 Mpps |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | Air: ± 24 kV, Contact: ± 24 kV |
US-16-150W Specification
US-16-150W Specification |
||
| Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70") | |
| Networking Interfaces | (16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports | |
| Management Interface | Ethernet In-Band | |
| Total Non-Blocking Throughput | 18 Gbps | |
| Switching Capacity | 36 Gbps | |
| Forwarding Rate | 26.78 Mpps | |
| MAC Address Table | 16384 | |
| Maximum Aggregations | 6 | |
| Monitoring Sessions | 1 | |
| Maximum VLANs | 255 | |
| Power Method | 100-240VAC/50-60 Hz, Universal Input | |
| Power Supply | AC/DC, Internal, 150W DC | |
| Max. Power Consumption | Including PoE Output | t Excluding PoE Output |
| 150W | 28W | |
| LEDs Per Port | RJ45 Data Ports | SFP Data Ports |
| PoE, Speed/Link/Activity | Speed/Link/Activity | |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | |
| Shock and Vibration | ETSI300-019-1.4 Standard | |
| Operating Temperature | -5 to 40° C (23 to 104° F) | |
| Operating Humidity | 5 to 95% Noncondensing | |
