US-24-250W
In Stock

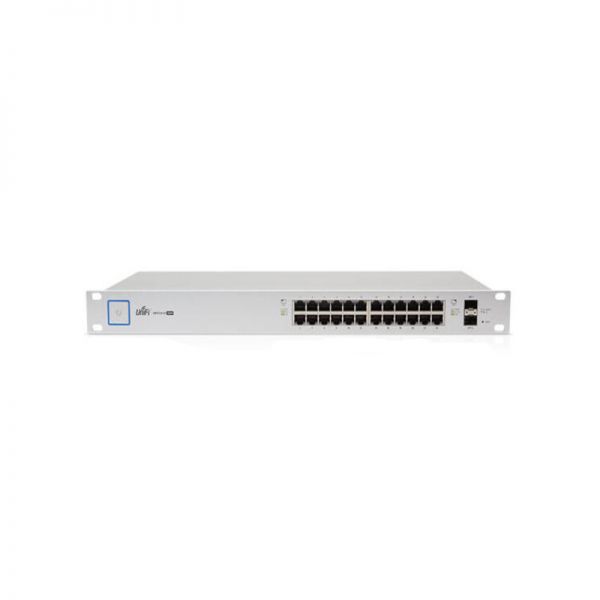

Ubiquiti / UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch
Description
US-24-250W Overview
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | US-24-250W |
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″) |
Networking Interfaces |
(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 250W DC |
Product Details
US-24-250W provides these features:
- ● (24) GbE, 802.3at PoE+ and 24V passive PoE RJ45 ports
- ● (2) 1G SFP ports
- ● 250W total PoE supply
Compare to Similar Items
Table 2 shows the comparison of US-24-250W.
| Module | US-24-250W | US-16-150W |
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″) |
443 x 43 x 221 mm
(17.44 x 1.69 x 8.70″) |
| Networking Interfaces | (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
(16) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
Ethernet In-Band |
| Power Method | 100-240VAC/50-60 Hz, Universal Input | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 250W DC | AC/DC, Internal, 150W DC |
US-24-250W Specification
US-24-250W Specification |
|
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
| Networking Interfaces | (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| MAC Address Table | 16384 |
| Maximum Aggregations | 6 |
| Monitoring Sessions | 1 |
| Maximum VLANs | 255 |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 250W DC |
| Max. Power Consumption Including PoE Output Excluding PoE Output |
250W 30W |
| LEDs Per Port RJ45 Data Ports SFP Data Ports |
PoE, Speed/Link/Activity Speed/Link/Activity |
| Sound Level Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3 |
9.1 dBr 14.2 dBr 16.8 dBr 21.2 dBr |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE+ Per Port | |
| PoE Interfaces | PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
