US-8-150W
In Stock

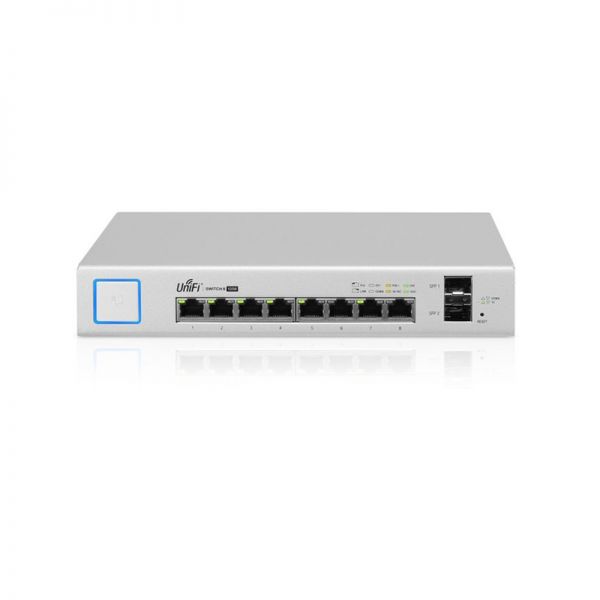

Ubiquiti / UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch
Description
US-8-150W Overview
The Switch 8 PoE 150W (US 8 PoE 150W), a fully managed switch with (8) GbE RJ45 ports and (2) 1G SFP port. Each of the switch’s ports can provide either 802.3at PoE+ or configurable, 24V passive PoE to UniFi access points or other PoE devices.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | US-8-150W |
| Power Supply | AC/DC, Internal, 150W DC |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
| Management Interfaces | Ethernet In-Band |
| Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25″) |
Product Details
US-8-150W provides these features:
- ● (8) GbE, 802.3at PoE+ and 24V passive PoE RJ45 ports
- ● (2) 1G SFP ports
- ● 130W total PoE supply
Compare to Similar Items
Table 2 shows the comparison of US-8-150W.
| Module | US-8-150W | US-16-150W |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
(16) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports |
| Management Interfaces | Ethernet In-Band | Ethernet In-Band |
| Operating Temperature | -5 to 45° C (23 to 113° F) | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing | 5 to 95% Noncondensing |
| Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25″) |
443 x 43 x 221 mm
(17.44 x 1.69 x 8.70″) |
US-8-150W Specification
US-8-150W Specification |
|
| Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25") |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
| Management Interfaces | Ethernet In-Band |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W DC |
| Max. Power Consumption | |
| Including PoE Output | 150W |
| Excluding PoE Output | 20W |
| Processor Specs | ARM Cortex-A9 400 MHz |
| Memory Information | 256MB DDR3 |
| Code Storage | 32 MB NOR Flash |
| Line Rate | 10 Gbps, Non-Blocking |
| LEDs | |
| System | Status |
| RJ45 Data Ports | PoE; Link/Speed/Activity |
| SFP Data Ports | Link/Speed/Activity |
| PoE Output (RJ45 Ports) | IEEE 802.3at/af 2-Pair (+1, 2; -3, 6); Passive 24V/0.7A 2-Pair (+4, 5; -7, 8) |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
