USW-16-POE

Model: UBNTUSW-16-POE - Ubiquiti Enterprise Switches

In Stock

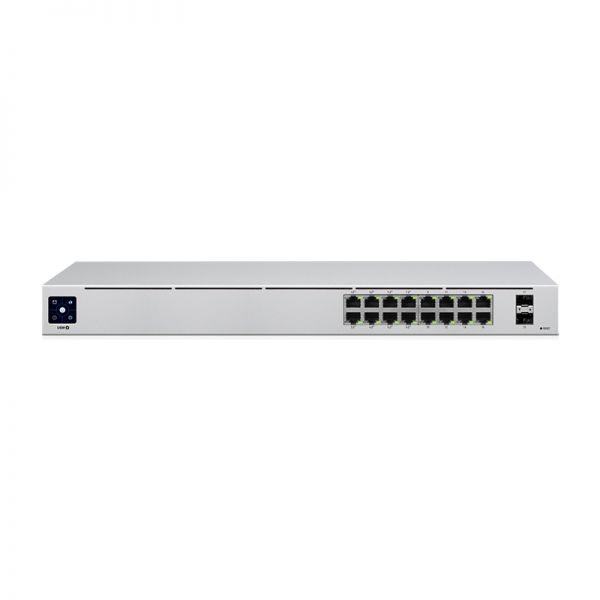

Ubiquiti UniFi 16-Port PoE Switch – 16 Ports – Manageable – 2 Layer Supported – Modular – 2 SFP Slots – Twisted Pair Optical Fiber

Description

Layer 2, PoE switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and (2) 1G SFP ports.

Table 1 shows the Quick Specs.

USW-16-POE provides these features:

Table 2 shows the comparison of USW-16-POE.

Module	USW-16-POE	US-16-150W
Power Supply	AC/DC, Internal, 60W	AC/DC, Internal, 150W DC
Power Method	100-240VAC/50-60 Hz, Universal Input	100-240VAC/50-60 Hz, Universal Input
Total Non-Blocking Throughput	18 Gbps	18 Gbps
Switching Capacity	36 Gbps	36 Gbps
Forwarding Rate	26.78 Mpps	26.78 Mpps

USW-16-POE specification
Mechanical
Dimensions	424.4 x 200 x 43.7 mm (16.71 x 7.87 x 1.72")
Interfaces Networking Management	(16) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput	18 Gbps
Switching Capacity	36 Gbps
Forwarding Rate	26.78 Mpps
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 60W
Supported Voltage Range	100 to 240VAC
Max. Power Consumption (Excluding PoE Output)	18W
LEDs RJ45 Data Ports SFP Data Ports	PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC
PoE
Total Available PoE	42W
PoE Interfaces Ports 1-8	POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE 802.3at	32W
Voltage Range 802.3af Mode	44-57V
Voltage Range 802.3at Mode	50-57V
