USW-Pro-24
In Stock

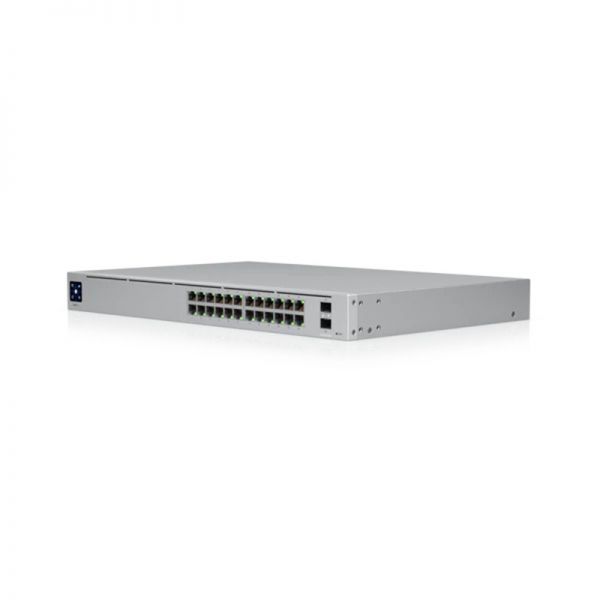

USW-Pro-24 – Layer 3 switch with (24) GbE RJ45 ports and (2) 10G SFP+ ports.
Description
USW-Pro-24 Overview
The Ubiquiti USW-Pro-24 is an advanced Layer 3 switch designed to meet the demanding requirements of modern networks. With its robust set of features, including 24 GbE RJ45 ports and 2 10G SFP+ ports, this switch delivers high performance and flexibility for both small and large-scale deployments. The USW-Pro-24 is ideal for business environments that require reliable, high-speed connectivity and powerful network management features.
Quick Spec
| Layer | Layer 3 |
| Ports | 24 GbE RJ45, 2 10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Power Supply | AC/DC, Redundant |
Product Features
- ● Advanced Layer 3 functionality including static routing and DHCP server capabilities.
- ● Dual 10G SFP+ ports for high-speed uplinks and fiber connectivity.
- ● Robust security features including port isolation and VLAN support.
- ● Intuitive UniFi Network Controller for seamless network management and monitoring.
- ● Redundant power supply ensuring continuous operation and reliability.
Product Applications
- ● Ideal for medium to large enterprise networks requiring robust network management and high-speed connectivity.
- ● Perfect for data centers needing reliable switches with Layer 3 capabilities and 10G uplink options.
- ● Suitable for educational institutions with complex network requirements spanning multiple departments and buildings.
Supported Options
| Power Supply | Ubiquiti USP-RPS |
| Rack Mount Kit | Ubiquiti RMK-14 |
| SFP+ Modules | Ubiquiti UF-MM-10G |
Compare to Similar Items
| Model | Differences |
| Ubiquiti USW-16-POE | Offers only 16 ports, Layer 2 switch, includes PoE ports |
| Ubiquiti USW-Pro-48 | Offers 48 RJ45 ports, higher switching capacity of 176 Gbps |
USW-Pro-24 Specification
USW-Pro-24 Specifications |
|
| Brand | Ubiquiti |
| Model | USW-Pro-24 |
| Layer | 3 |
| Number of RJ45 Ports | 24 |
| RJ45 Port Speed | 1 Gbps |
| Number of SFP+ Ports | 2 |
| SFP+ Port Speed | 10 Gbps |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Maximum Power Consumption | 40W |
| Power Method | AC/DC Power Adapter |
| Management Interface | UniFi Controller |
| Operating Temperature | -5 to 40??C |
| Operating Humidity | 10 to 90% Non-Condensing |
| Dimensions | 442.4 x 286 x 43.7 mm |
| Mounting | Rack-Mountable |
| Cooling | Fans |
| MAC Address Table | 16K |
| VLAN Support | Yes |
| Jumbo Frame Support | Yes |
| LED Indicators | System, Link/Activity |
