USW-Pro-48

Model: UBNT USW-Pro-48 - Ubiquiti Enterprise Switches
In Stock

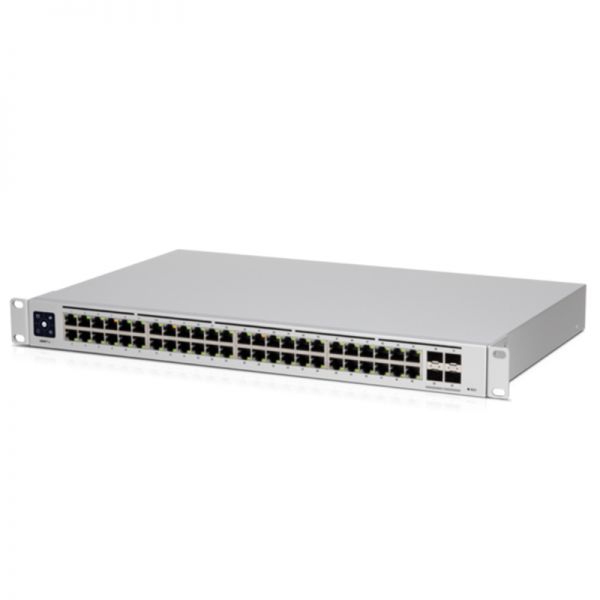

The Switch Pro 48 (USW Pro 48) is a fully managed switch with (48) GbE RJ45 ports and (4) 10G SFP+ ports.

Description

USW-Pro-48 Overview

Layer 3 switch with (48) GbE RJ45 ports and (4) 10G SFP+ ports.

Quick Specs

Table 1 shows the Quick Specs.

Product Code USW-Pro-48
Power Supply AC/DC, Internal, 60W
Voltage Range 100 to 240VAC
Max Power Consumption 60W

Product Details

USW-PRO-48 provides these features:

  • ● 3″ LCM color touchscreen with AR switch management
  • ● (48) GbE RJ45 ports
  • ● (4) 10G SFP+ ports
  • ● USP RPS DC input
  • ● Near-silent cooling
  • ● Layer 3 switching features

Compare to Similar Items

Table 2 shows the comparison of USW-Pro-48.

Module USW-Pro-48 USW-Pro-48-PoE
Power Supply AC/DC, Internal, 60W AC/DC, Internal, 660W
Voltage Range 100 to 240VAC 100 to 240VAC
Max Power Consumption 60W 60W (Excluding PoE Output)

USW-Pro-48 Specification

USW-Pro-48 Specification

Dimensions 442.4 x 285.4 x 43.7 mm
(17.42 x 11.24 x 1.72")
Interfaces
Networking

Management

(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput 88 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.944 Mpps
Power Method
Universal Input
USP RPS DC Input
100-240VAC, 50/60 Hz
11.5VDC, 5.22A
Power Supply AC/DC, Internal, 60W
Voltage Range 100 to 240VAC
Max Power Consumption 60W
LEDs
RJ45 Data Ports
SFP+ Data Ports
Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
