WS-C2960X-24PD-L

Quick Specs

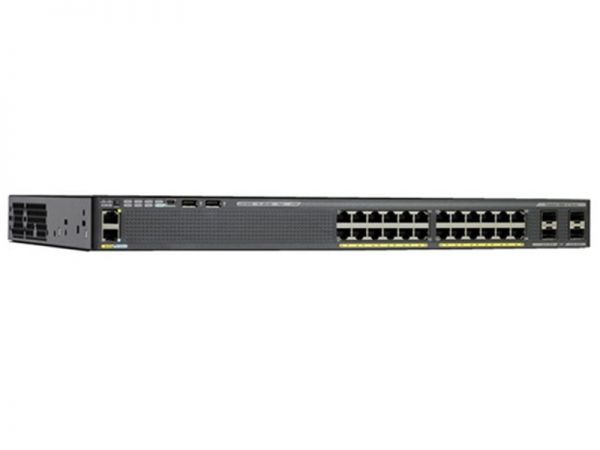

Figure 1 shows the appearance of WS-C2960X-24PD-L.

Table 1 shows the Quick Specs.

Product Details

Figure 2 shows the front panel of WS-C2960X-24PD-L.

Note:

① Ethernet management port ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ⑥ SFP module ports

② Mode button ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ⑦ 24 x 10/100/1000 ports

③ Switch LEDs ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?⑧ CONSOLE LED

④ USB mini-Type B (console) port ? ? ? ? ? ? ? ? ? ? ? ?⑨ MGMT LED

⑤ USB Type A ports ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ⑩ RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.

Figure 3 shows the back panel of WS-C2960X-24PD-L.

Note:

① FlexStack-Plus module slot and cover ? ? ? ? ? ? ? ? ? ? ? ? ③ RPS Connector

② Fan Exhaust ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?④ AC power connector

Figure 4 shows the stackable capacity.

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.

The Accessories

Table 2 shows some accessories of WS-C2960X-24PD-L.
