WS-C2960X-24PSQ-L
In Stock
Quick Specs

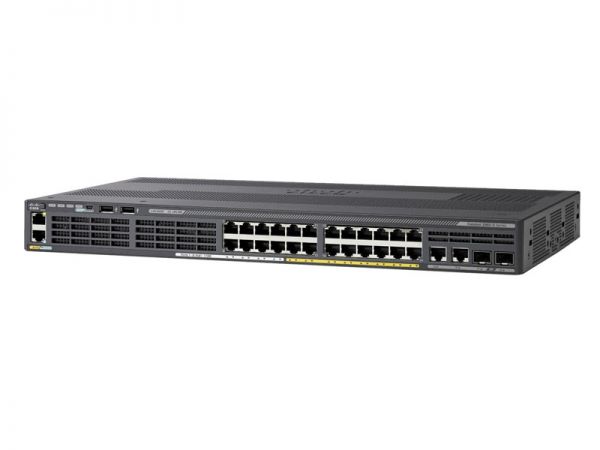

Figure 1 shows the appearance of WS-C2960X-24PSQ-L.
Table 1 shows the Quick Specs
| Product Code | WS-C2960X-24PSQ-L |
| Enclosure Type | Rack-mountable – 1U |
| Feature Set | LAN Base |
| Uplink Interfaces | 2 x 1G SFP + 2 x 10/100/1000BT |
| Ports | 24 x 10/100/1000 Ethernet Gigabit ports (8 PoE) |
| Available PoE Power | 110W |
| Maximum stacking number | Not Supported |
| Stack bandwidth | Not Supported |
| Forwarding Performance | 71.4Mpps |
| Switching Bandwidth | 216Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Dimensions | 44.5 cm x 28 cm x 4.45 cm |
Product Details
Figure 2 shows the front panel of WS-C2960X-24PSQ-L.
Note:
| ① | One Console Port | ⑤ | Two USB Ports |
| ② | 24 x 10/100/1000 Ethernet Gigabit Ports (8 PoE) | ⑥ | One USB mini Port |
| ③ | 2 x 10/100/1000BT | ⑦ | LEDs Area |
| ④ | 2 x 1G SFP | ⑧ | One MGMT Port |
– LEDs area include SYST (system), STAT (status), SPEED, and POE LEDs.
The Accessories
Table 2 shows some accessories of the WS-C2960X-24PSQ-L.
| Models | Description |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison of similar items.
| Models | WS-C2960X-24PSQ-L | WS-C2960X-24PS-L |
| Ports | 24 x Ethernet 10/100/1000 Gigabit ports?(8 PoE) | 24 x Ethernet 10/100/1000 Gigabit, PoE ports |
| Uplinks | 2 x 1G SFP + 2 x 10/100/1000BT | 4 x 1G SFP |
| Feature Set | LAN Base | LAN Base |
| FlexStack-Plus Stacking | Not Supported | Optional |
| Available PoE Power | 110W | 370W |
Description
WS-C2960X-24PSQ-L Overview
Cisco catalyst 2960X-24PSQ-L LAN Base standalone Layer 2 switch offers twenty-four 10/10/1000 Ethernet Gigabit ports and two 1G SFP, and two Copper 10/100/1000 uplink interfaces. The industry standard IEEE802.3at PoE+ provides up to 110W PoE power which can powers up to 8 ports of POE(first eight ports only) with 12.95W per port or 7 ports of POE with 15.4W per port or 3 ports of POE with 30W per port.
WS-C2960X-24PSQ-L Specification
WS-C2960X-24PSQ-L Specification |
|
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 1G SFP + 2 10/100/1000BT |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 110W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | None |
| Stack Bandwidth | None |
| Forwarding Performance | 71.4Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | None |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.16KVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 11.03 Inches (28 cm) |
| Height | 1.73 Inches (4.45 cm) |
| Weight | 12.8 Pounds (5.8 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 462,680 |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3af and IEEE 802.3at ● IEEE 802.3ah (100BASE-X single/multimode fiber only) ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T |
| System software / license | |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | ●Jumbo Frames
●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
| Network security | ●SSH, SSL and SCP
●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle |
| Management and Troubleshooting | ●Auto-MDOX
●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB |
| Environmental Ranges | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF
(-5ºC to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF
(-5ºC to 40ºC) |
| Short-term exception at sea level* | 23ºF to 131ºF
(-5ºC to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* | 23ºF to 122ºF
(-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF
(-5ºC to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF
(-5ºC to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF
(-25º to 70ºC) |
| Operating altitude | Up to 10,000 Feet
(Up to 3000 Meters) |
| Storage altitude | Up to 13,000
(Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
