Model: WS-X6816-10T-2T Cisco Catalyst 6500 Series Ethernet Module
In Stock
Login To See Price
Categories: ,

Quick Specs

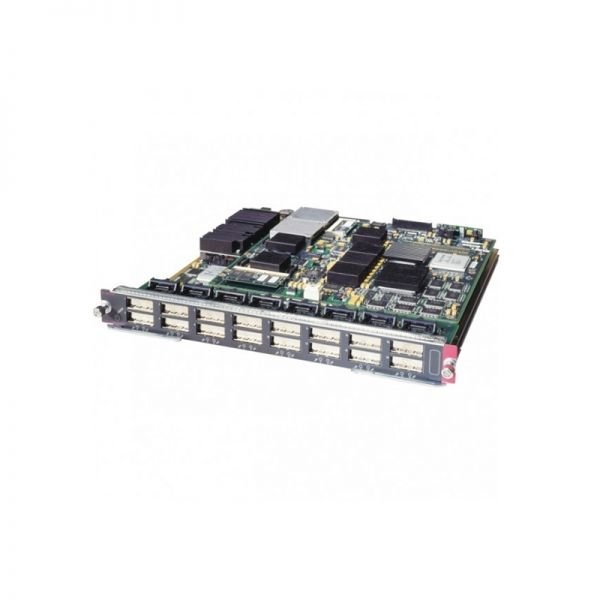

Figure 1 shows the appearance of WS-X6816-10T-2T.

Table 1 shows the Quick Specs.

Product Code WS-X6816-10T-2T
Description  6800 Series 16-Port 10 Gigabit Ethernet Copper Module with DFC4 & DFC4XL
Feature 16-Port 10GbE Copper Module
Ports 16
Optics Copper (RJ-45) connectors
Switch fabric connection 2 x 20 Gbps (40 Gbps total)
Oversubscription 4:1 16 ports (oversubscription mode)

1:1 4 ports (performance mode)
Forwarding engine

  • ●   WS-X6816-10T-2T: comes equipped with DFC4 for distributed forwarding, supporting 256K forwarding entries, increased ACL entries to 64K, increased Netflow entries to 512K and increased IPv4 forwarding speed to 60 Mpps



  • ●   WS-X6816-10T-2TXL: equipped with DFC4XL for distributed forwarding, supporting 1 million forwarding entries, increased ACL entries to 256K, increased Netflow entries to 1024K and increased IPv4 forwarding speed to 60 Mpps



  • ●   Increased performance of up to 60Mpps for L2, IPv4 and MPLS forwarding and up to 30Mpps for IPv6 forwarding



  • ●   Support for 16K Bridge Domains, allowing the standard 4K VLANs to be reused across these bridge domains, effectively increasing the number of VLANs available in the system



  • ●   Increased MAC Address Table to 128K



  • ●   Increased multicast routes to 256K



  • ●   IGMPv3 snooping in hardware



  • ●   PIM registers in hardware



  • ●   IPv6 MLDv2 snooping in hardware



  • ●   IPV4 & IPv6 in IPv6 tunnelling



  • ●   IPv6 in IPv4 tunneling ISATAP, 6to4, GRE)



  • ●   QoS support for uniform, short pipe and pipe mode tunnel



  • ●   Terminate the tunnel in the same loopback
Queues Oversubscription mode:



  • ●   Receive: 1p7q2t per port



  • ●   Transmit: 1p7q4t per port group

    Performance mode:



  • ●   Receive: 8q4t per port



  • ●   Transmit: 1p7q4t per port
Queuing mechanisms

  • ●   Class of Service (CoS) based queue mapping



  • ●   (Differentiated Service Code Point (DSCP) based queue mapping
Scheduler Oversubscription mode:



  • ●   Deficit Weighted Round Robin (DWRR)



  • ●   Weighted Random Early Detection (WRED)

    Performance mode:



  • ●   DWRR



  • ●   WRED



  • ●   Shaped Round Robin (SRR) at egress
Port buffers Oversubscription mode:



  • ●   90 MB per port group

    Performance mode:



  • ●   256 MB per port (128 MB for ingress and 128 MB for egress)
Hardware-based multicast replication

  • ●   Ingress and Egress replication-mode



  • ●   Approximately 20 Gbps per replication engine



  • ●   2 replication engines per module
Jumbo frame support for bridged and routed packets Up to 9216 bytes
Maximum port density per chassis 176 ports (6513-E chassis)

128 ports (6509-E chassis)
Maximum port density per VSS 352 ports
Can be used to form virtual switch link

  • ●   Performance mode: Yes

    Up to 4 10 Gigabit Ethernet ports can be used for virtual switch link



  • ●   Oversubscription mode: No
Supervisor engines supported Catalyst 6500 Supervisor Engine 2T and 2TXL
Chassis supported

  • ●   Any Cisco Catalyst 6500 E-Series chassis, including 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E (NEBS compliant) and 6513-E chassis



  • ●   Not supported in non-E Series chassis
Slot requirements

  • ●   Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E or 6509-V-E or chassis



  • ●   Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E chassis
Onboard memory 1 GB default
Cabling Supported Category 6, 6A UTP & STP & Category 7 STP copper cabling

Compare to Similar Items

Table 2 shows the comparison of WS-X6816-10G-2T, WS-X6816-10G-2TXL and WS-X6816-10T-2T.

Product Code WS-X6816-10G-2T WS-X6816-10G-2TXL WS-X6816-10T-2T
Description 6800 Series 16-Port 10 Gigabit Ethernet Fiber Module with DFC4 & DFC4XL  16-port 10 Gigabit Ethernet Fiber Module DFC4XL  6800 Series 16-Port 10 Gigabit Ethernet Copper Module with DFC4 & DFC4XL

Description

WS-X6816-10T-2T Overview

WS-X6816-10T-2T is 16-port 10 Gigabit Ethernet Copper Module for Cisco Catalyst 6500 E-series switch with exclusively supported by Supervisor Engine 2T. WS-X6816-10T-2T equipped WS-F6K-DFC4-E daughter card in order to deliver optimal performance up to a sustained 60 Mpps for L2, IPv4 and MPLS forwarding and 30 Mpps for IPv6 forwarding. WS-X6816-10T-2T is designed for data center access and switch-to-switch connectivity as well as high-spped server connectivity. Users can configure 4 port groups of 4 ports each, each port group in either oversubscription mode or performance mode, providing the flexibility to use some ports for connection to servers and other ports for interconnection of switches.

WS-X6816-10T-2T Specification

6800 Series 10 Gigabit Ethernet modules Specifications
Standard protocols IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an
Physical specifications ●  Occupies one slot in the Cisco Catalyst 6500 E-Series chassis

●  Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)

●  Weight:

◦   WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2
Environmental conditions Operating temperature:

●  Agency-certified for operation: 32 to 104°F (0 to 40°C)

●  Design and tested for operation 32 to 130°F (0 to 55°C)

●  Storage temperature: -40 to 167°F (-40 to 75°C)

●  Relative humidity: 10 to 90 percent, noncondensing

Operating altitude:

●  Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)

●  Designed and tested for operation -500 to 10000 ft (-150 to 3000m)
Regulatory compliance 6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMC and safety standards:

EMC Standards:

●  FCC Part 15 (CFR 47) Class A

●  ICES-003 Class A

●  VCCI Class A

●  EN55022 Class A

●  EN55024

●  CISPR24

●  CISPR 22 Class A

●  AS/NZS CISPR 22 Class A

●  ETS 300 386

●  KN 22 Class A

●  EN 50082-1

●  EN61000-3-2

●  EN61000-3-3

●  EN61000-6-1

●  CNS13438 Class A

●  KN6100 -4 Series

Safety Standards:

●  UL 60950-1

●  CAN/CSA C22.2 No. 60950

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950-1

●  IEC 60825 Class 1

●  EN 60825 Class 1

●  21CFR 1040
NEBS criteria levels SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
ETSI ●  ETS 300 019-2-1, Class 1.1 Storage

●  ETS 300 019-2-2, Class 2.1 and 2.2 Transportation

●  ETS 300 019-2-3, Class 3.1E Stationary Use
Network management ●  ETHERLIKE-MIB (RFC 1643)

●  IF-MIB (RFC 1573)

●  Bridge MIB (RFC 1493)

●  CISCO-STACK-MIB

●  CISCO-VTP-MIB

●  CISCO-CDP-MIB

●  RMON MIB (RFC 1757)

●  CISCO-PAGP-MIB

●  CISCO-STP-EXTENSIONS-MIB

●  CISCO-VLAN-BRIDGE-MIB

●  CISCO-VLAN-MEMBERSHIP-MIB

●  ENTITY-MIB (RFC 2037)

●  HC-RMON

●  RFC1213-MIB (MIB-II)

●  SMON-MIB
Power requirements ●  WS-X6816-10G-2T: 488.5 Watts

●  WS-X6816-10G-2TXL: 503.5 Watts

●  WS-X6816-10T-2T: 514.96 Watts

●  WS-X6816-10T-2TXL: 529.96 Watts
Indicators ●  Status: green (operational), red (faulty), and orange (module booting)

●  Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)

Reviews

There are no reviews yet.
