WS-X6904-40G-2T

Name: WS-X6904-40G-2T
SKU: 3405
Price: 3500000.00 NGN
Availability: InStock

Model: WS-X6904-40G-2T Cisco Catalyst 6500 Series Ethernet Module

In Stock

Categories: Cisco, Cisco Modules & Cards

Quick Specs

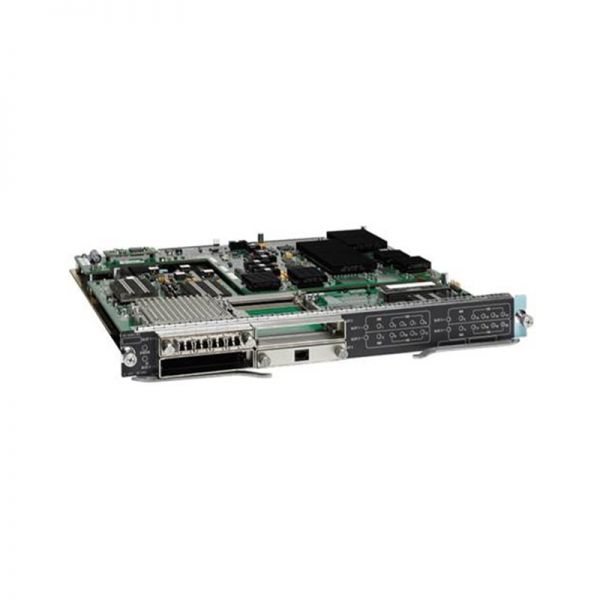

Figure 1 shows the appearance of WS-X6904-40G-2T.

Table 1 shows the Quick Specs.

Product Code	WS-X6904-40G-2T
Power requirements	468 watts
Product Description	Cisco Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6904-40G-2T
Devide Tyde	10 Gigabit Ethernet interface Fiber module
Ports	4 * 40G Gigabit Ethenet or 16 * 10 Gigabit Ethernet
switch fabric connection	CFP-40G-LR4, 40G-CFP-SR4 FourX converter for 10 Gigabit Ethernet SFP+
Forwarding Engine	WS-F6K-DFC4-E
ACL entries	64000
Netflow entries	512000
Routing entries	256000
Bridge Domains	16000
MAC address	128000
Multicast routing	256000
IPv4 forwarding speed	60 Mpps

The Modules, Cards, Licenses

Table 2. Supported Optics for WS-X6904-40G-2T.

Product ID	Transceiver Type	Media Type	Distance
CFP-40G-SR4	40GBASE-SR4 (MMF)	Multimode Fiber 850nm	100m over OM3 Multimode Fiber
CFP-40G-LR4	40GBASE-LR4 (SMF)	Single Mode Fiber 1310nm CWDM	10 km
CVR-CFP-410GSFP	FourX Adapter: Converts each 40 GE CFP port to 4 10 GE SFP+ ports or 4 1GE SFP ports	N/A	N/A
SFP-10G-SR SFP-10G-LR SFP-10G-LRM SFP-10G-ER SFP-H10GB-CU1M SFP-H10GB-CU3M SFP-H10GB-CU5M	Supported SFP+ transceivers with FourX adapter	MMF (OM3) SMF (G.652) MMF (FDDI grade) SMF(G.652) Copper TwinAx cable Copper TwinAx cable Copper TwinAx cable	Up to 300m 10km 220m 40km 1m 3m 5m
GLC-SX-MMD GLC-LH-SMD GLC-T	Supported SFP transceivers with FourX adapter	MMF (50 μm/ 62.5 μm FDDI) SMF/MMF Category 5 unshielded twisted pair copper cabling	550m/220m 10km (SMF)/550m (MMF) 100m

Compare to Similar Items

Table 3 shows the comparison of WS-X6904-40G-2T and WS-X6908-10G-2T.

Product Code	WS-X6904-40G-2T	WS-X6908-10G-2T
Product Description	Cisco Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6904-40G-2T	Cisco Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6908-10G-2T
Power requirements	468 watts	588 Watts

Description

WS-X6904-40G-2T Overview

WS-X6904-40G-2T provides 4-port 40 Gigabit Ethernet Fiber connectivity, in which each port can accept a 40 Gigabit Ethernet C Form-Factor Pluggable (CFP) optics module or be converted to four ports of 10 Gigabit Ethernet with a FourX adapter, enabling customers to deploy 10 Gigabit Ethernet to meet current needs and be ready to transition to 40 Gigabit Ethernet without any disruption. The module is primary designed for campus, data center and service provider, as well as for high-density 10 Gigabit Ethernet and 40 Gigabit Ethernet transport in the core. WS-X6904-40G-2T is only compatible with Supervisor Engine 2T and supports two types of CFP optics: CFP-40G-LR4 and CFP-40G-SR4 to provide the distance up to 10-km over single-mode fiber and 100m over OM3 multimode fiber, respectively, it also supports Virtual Switch Link (VSL) on all ports.

WS-X6904-40G-2T Specification

WS-X6904-40G-2T Specification
Product Description	Cisco Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6904-40G-2T
Devide Tyde	10 Gigabit Ethernet interface Fiber module
Ports	4 * 40G Gigabit Ethenet or 16 * 10 Gigabit Ethernet
switch fabric connection	CFP-40G-LR4, 40G-CFP-SR4 FourX converter for 10 Gigabit Ethernet SFP+
Forwarding Engine	WS-F6K-DFC4-E
ACL entries	64000
Netflow entries	512000
Routing entries	256000
Bridge Domains	16000
MAC address	128000
Multicast routing	256000
IPv4 forwarding speed	60 Mpps
Scheduler	● Deficit Weighted Round Robin (DWRR) ● Weighted Random Early Detection (WRED)
Virtual Switch Link (VSL)	Yes (all ports). Maximum of 4 x 40 G ports (refer to EtherChannel capacity section above)
Queuing Mechanisms	● CoS-based queue mapping ● DSCP-based queue mapping
Hardware-based Multicast replication	● Ingress and egress ● Approximately 20 GB per replication engine ● Four replication engines per module delivering total throughput of 80 Gbps
Jumbo frame support for bridged and routed packets	Up to 9216 bytes
Supervisor engines supported	Cisco Catalyst 6500 Series Supervisor Engine VS-S2T-10G
Onboard memory	2 GB default
Power requirement	468 Watts
